SM712 TVS Diode Array Explained: Protection, Pinout, and Applications

The SM712 SM712 SMC Diode Solutions 7V/12V TVS,PACKAGE SOT-23, TVS A In Stock: 670324 pcs TVS diode array is a compact protection device designed to guard sensitive signal lines against fast voltage spikes and electrostatic discharge. This article explains why transients from sources like switching events or external surges can damage communication ports and low-voltage data lines, then shows how the SM712 helps by clamping excess voltage and diverting energy to ground. You will also review the pin configuration, key characteristics, and the internal diode arrangement that supports stable operation in real circuits. To support practical design decisions, the article compares alternatives and other TVS diode arrays, then connects the SM712 to common use cases like RS-485, network equipment, security systems, and HFC systems, finishing with a 2D SOT-23 drawing to guide PCB placement and footprint design.

Catalog

SM712 TVS Diode Array

The SM712 SM712 SMC Diode Solutions 7V/12V TVS,PACKAGE SOT-23, TVS A In Stock: 670324 pcs TVS Diode Array is crafted to shield delicate electronic signal pathways from unpredictable transient voltage fluctuations and electrostatic discharges. It ingeniously integrates multiple TVS diodes into one compact assembly, promptly managing unexpected voltages by channeling surplus energy harmlessly to the ground. This inventive design serves well in defending communication ports and low-voltage data lines, thus notably bolstering circuit reliability.

Within electronic systems, abrupt voltage surges and electrostatic discharges present dangers that could culminate in component breakdowns. Such transient phenomena might arise from natural events, such as lightning, or artificial sources like device switching. The SM712 TVS Diode Array combats these issues through robust intervention, ensuring smooth and continuous operation.

Modern electronic devices, especially those integrated with smart technologies and IoT applications, necessitate formidable defenses against electrical disruptions. By incorporating the SM712 TVS Diode Array, these systems benefit from prolonged operational life and minimized maintenance expenses, delivering strategic advantages to industries that depend on reliable electronic functionality.

In tangible scenarios, the diode array is applied where precision and steadfastness are crucial. Its use in data centers, for example, protects servers from unforeseen disruptions, illustrating a dedication to uninterrupted operations that many businesses value. The diode array's role in ensuring steady performance is indeed noteworthy.

Maintaining circuit stability is ideal for the enduring operation of electronic systems. The SM712 TVS Diode Array not only alleviates challenges posed by voltage surges but also aids in sustaining system integrity. This aptitude for safeguarding circuit stability is commendable, accentuating the value of adopting protective measures in sophisticated electronic designs.

SM712 TVS Diode Array Pin Configuration

Characteristics of the SM712 TVS Diode Array

Alternatives to SM712 Components

When replacing the SM712 SM712 SMC Diode Solutions 7V/12V TVS,PACKAGE SOT-23, TVS A In Stock: 670324 pcs , diving deep into the specifications and distinct traits of potential options like the AQ24CANA and SP1305 reveals significant insights. These alternatives offer protective features that cater to diverse electronic design requirements. The AQ24CANA is admired for its low capacitance, a substantial factor in safeguarding signal integrity within high-speed data scenarios. The SP1305 stands out for its solid surge protection, suiting areas prone to electrical disruptions. Examining performance benchmarks such as capacitance, surge protection capabilities, and response times helps make informed choices. The AQ24CANA’s architecture effectively reduces signal degradation, a significant factor for data-focused operations. The SP1305’s strength in handling high-energy transients supports system reliability, ideal for turbulent environments.

These alternatives have been seamlessly integrated across industries demanding high efficiency and durability. Knowledge from industry professionals show the necessity of aligning device attributes with operational demands to ensure exceptional performance across varying conditions. These practical applications provide guidance in crafting sophisticated systems that strive for both innovation and functionality.

Evaluating these substitutes requires a close look at the integration process. Factors such as compatibility with existing systems can shape overall performance. It is essential to comprehend how each component aligns with broader design objectives to leverage enduring benefits. Integrating AQ24CANA or SP1305 can enhance system attributes like superior data transmission or heightened resistance to electrical surges. These advantages might not be immediately visible, yet they can profoundly enhance long-term efficiency and dependability.

Understanding how these components fit into current protocols and systems can lead to lower operational costs and prolong the durability of electronic setups. Selecting the appropriate components involves assessing future expansion and advancing technologies. Professionals frequently use past experiences to predict upcoming industry trends, choosing components that address both present challenges and are set to tackle future potential issues.

Other Available TVS Diode Arrays

For those exploring alternative options in TVS diode arrays, choices such as AQ1003 and AQ1005 present themselves as promising candidates. Each offers distinct design elements and operational traits, providing flexibility to address specific circuit protection needs that may surface in various electronic settings.

The AQ1003 offers a specialized set of features, optimized for situations that demand enhanced suppression capacity, seamlessly handling transient voltage scenarios. On the other hand, the AQ1005 focuses on lower capacitance tailored for high-frequency uses, showcasing its adeptness in situations where maintaining signal integrity is important. Deciphering these characteristics shape protection strategies, assuring that electronics sustain peak performance when faced with demanding conditions.

Practical design work shows that selecting a suitable TVS diode array requires balancing response speed, power handling, and environmental tolerance. Careful testing and evaluation help confirm that the chosen device limits voltage spikes effectively while maintaining overall system reliability.

The strategic choice of TVS diode arrays not only shields circuits but also lifts operational efficacy. The integration of elements like AQ1003 and AQ1005 into intricate systems calls for anticipation and thorough planning, taking into account aspects like board configuration and thermal regulation to bolster performance. This forward-thinking tactic often reaps enduring advantages, protecting technological and innovative investments.

Operational SM712 TVS Diode Array

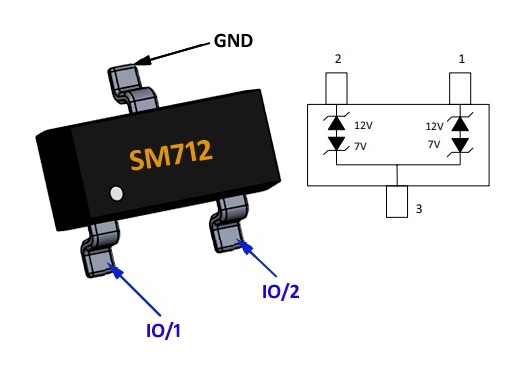

The SM712 SM712 SMC Diode Solutions 7V/12V TVS,PACKAGE SOT-23, TVS A In Stock: 670324 pcs TVS Diode Array represents a significant leap in circuit protection technology, characterized by its unique blend of two 12V and two 7V TVS diodes. This design consolidates complexity into a single module, replacing the need for separate components. By using a common anode layout, the diode array efficiently mitigates voltage spikes caused by trace inductance, contributing to improved circuit stability. This setup ensures that transmission components operate under reduced strain due to lower clamping voltage, enhancing the reliability of shielded transceivers.

Additionally, the SM712 showcases a simplified 3-pin architecture, consisting of input/output and grounding connections. This setup simplifies integration while maintaining strong defense against transient voltages. Such design elements are useful in settings where both circuit performance and device durability matter.

Operational Voltage Spectrum:

- Derived from its series designation

- Demonstrates adaptability across multiple applications

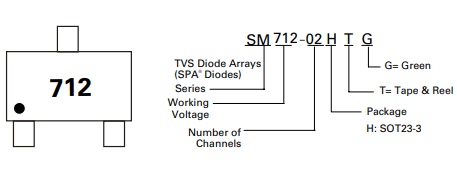

For ease of deployment, detailed diagrams are provided. They offer insights into the internal structure and marking, facilitating quick understanding and reference. These illustrations are important for precision in installation and upkeep, which are key factors in minimizing downtime and ensuring the efficient function of electronic systems.

SM712 TVS Diode Array Applications

The SM712 SM712 SMC Diode Solutions 7V/12V TVS,PACKAGE SOT-23, TVS A In Stock: 670324 pcs TVS Diode Array is used in systems that require reliable protection for sensitive signal lines exposed to voltage transients. Its integrated design supports stable operation across communication, security, and network environments.

Specific applications include:

• RS-485 transceivers, where the SM712 supports extended common-mode voltage ranges and helps maintain stable data communication under varying electrical conditions.
• Security systems and ATMs, providing protection against electrical disturbances while integrating smoothly into existing control and monitoring circuits.
• Hybrid Fiber Coaxial (HFC) systems, where it improves signal integrity and transmission reliability by suppressing transient voltage spikes.
• Network infrastructure equipment, helping protect data lines, reduce system downtime, and lower maintenance requirements in complex networks.

By balancing effective transient protection with compact integration, the SM712 supports long-term reliability in demanding applications. Its use across these areas highlights how well-designed protection components contribute to stable performance, cost efficiency, and dependable system operation.

2D Visualization in SOT-23 Package

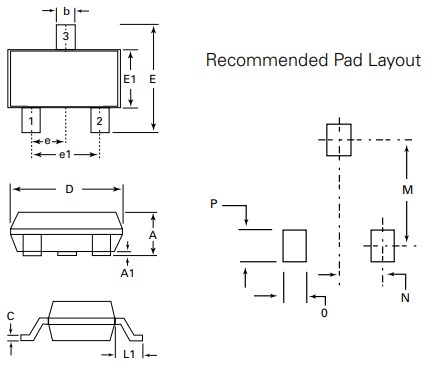

The 2D visualization shows the mechanical outline of the SM712 SM712 SMC Diode Solutions 7V/12V TVS,PACKAGE SOT-23, TVS A In Stock: 670324 pcs TVS Diode Array in a compact SOT-23 package. It details the overall body size, height, and lead geometry, helping designers verify clearance and placement when fitting the device onto a printed circuit board. Dimension labels indicate critical tolerances, ensuring the package fits reliably within standard surface-mount assembly processes.

The drawing also includes multiple views that clarify pin positioning and lead spacing. These views help confirm correct orientation during placement, reducing the risk of assembly errors. Pin numbering is shown to support accurate electrical connection to protected signal lines and ground.

In addition, the recommended pad layout illustrates how PCB pads should be sized and spaced for proper soldering. This layout supports stable mechanical attachment, good electrical contact, and consistent manufacturing results, making it useful for footprint design and production planning.

Conclusion

The SM712 SM712 SMC Diode Solutions 7V/12V TVS,PACKAGE SOT-23, TVS A In Stock: 670324 pcs TVS diode array is used when a circuit needs reliable, fast protection for exposed signal lines without adding bulky parts or complicated layouts. Choosing the right protection device comes down to matching the required working voltage, clamping behavior, capacitance, and response needs so signal quality remains intact while surge energy is safely handled. Alternatives such as low-capacitance or higher-surge options can be better fits depending on whether signal integrity or surge strength is the main priority. In applications like RS-485 links, network infrastructure, and security electronics, the SM712 helps reduce failures, downtime, and maintenance by limiting stress on transceivers and data lines. The SOT-23 mechanical outline and recommended pad layout complete the design picture by helping you place, orient, and solder the device correctly for consistent production results.
