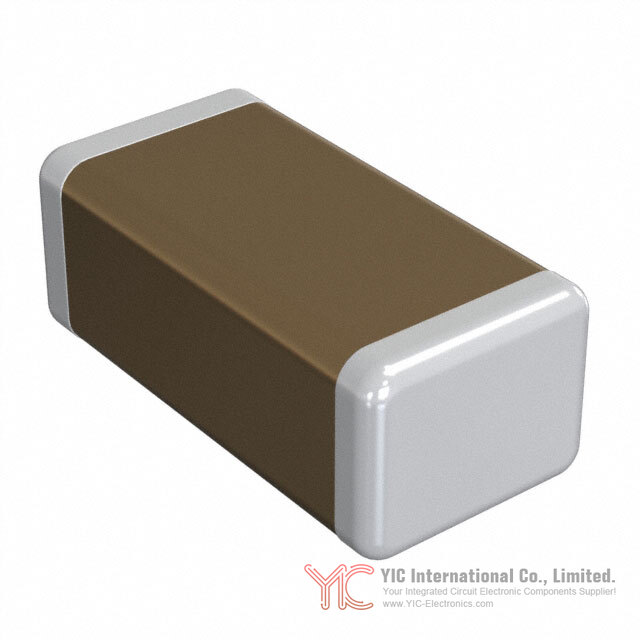

GRM31MF51A475ZA01L

FAQFrequently Asked Questions

• What are the key design risks when using the GRM31MF51A475ZA01L in power supply decoupling applications due to its Y5V dielectric characteristics? The GRM31MF51A475ZA01L uses a Y5V dielectric, which exhibits significant capacitance loss under DC bias voltage and with temperature variation. At or near its rated 10V, the effective capacitance can drop by over 50%, potentially compromising decoupling performance in low-voltage systems. Additionally, capacitance can decrease by more than 70% at -30°C compared to room temperature, making it unsuitable for precision or stable filtering applications across the full operating range.
• How does the -20%/+80% tolerance of the GRM31MF51A475ZA01L impact system-level design margins, especially in timing or filtering circuits? The asymmetric tolerance (-20%, +80%) means the actual capacitance could be as low as 3.76µF or as high as 8.46µF. In timing or RC filter applications, this wide variation can lead to unpredictable time constants or cutoff frequencies. Designers must account for worst-case low capacitance to avoid under-damping or insufficient energy storage, particularly in cost-sensitive designs where tighter-tolerance alternatives are not feasible.
• Can the GRM31MF51A475ZA01L be reliably used in automotive or industrial environments given its operating temperature range and dielectric type? While the GRM31MF51A475ZA01L is rated for -30°C to 85°C, the Y5V dielectric’s severe capacitance drift with temperature and voltage makes it inappropriate for automotive or industrial systems requiring stable performance across temperature extremes. Applications such as engine control units or outdoor industrial electronics should avoid this part in favor of X7R or C0G/NP0 alternatives with tighter stability.
• What PCB layout considerations are critical when placing the GRM31MF51A475ZA01L in high-density surface-mount designs? The GRM31MF51A475ZA01L comes in a 1206 (3.20mm x 1.60mm) package with a maximum thickness of 1.25mm. Due to its high capacitance and Y5V dielectric, it is prone to microphonic noise and piezoelectric effects under mechanical stress. It should be placed away from high-vibration zones and oriented to minimize board flexure. Additionally, keep trace inductance low by using short, direct connections to power and ground planes to maintain effective high-frequency bypassing.
• Is the GRM31MF51A475ZA01L suitable for bulk energy storage in battery-powered devices, and what limitations should be considered? Although the GRM31MF51A475ZA01L offers 4.7µF in a compact 1206 package, its Y5V dielectric suffers from high leakage current and poor capacitance retention under DC bias, reducing effective energy storage. In battery-powered systems, this can lead to increased quiescent current and reduced hold-up time. Engineers should evaluate whether the volumetric efficiency justifies the performance trade-offs, especially when compared to tantalum or polymer capacitors with more stable characteristics.
• What are the implications of the GRM31MF51A475ZA01L being discontinued at Digi-Key for long-term product development and sourcing? The GRM31MF51A475ZA01L is listed as discontinued at Digi-Key, signaling limited future availability and potential obsolescence risk. Designers relying on this part for new product introductions (NPI) should initiate a last-time buy or transition to a supported alternative such as Murata’s GRM31CR61A475KE15L (X5R, 10V, 4.7µF, 1206), which offers better stability and broader distribution support.
• How does the moisture sensitivity level (MSL 1) of the GRM31MF51A475ZA01L affect handling and assembly processes? With an MSL of 1 (unlimited floor life), the GRM31MF51A475ZA01L can be stored and handled under normal ambient conditions without dry packing or bake requirements. This simplifies logistics and reduces pre-assembly processing steps, making it suitable for high-volume manufacturing environments where moisture control is critical but time-sensitive.
• Are there pin-to-pin or functionally compatible alternatives to the GRM31MF51A475ZA01L that offer improved electrical stability? Yes, engineers seeking improved stability should consider the GRM31CR61A475KE15L (X5R, 10V, 4.7µF, 1206) from the same GRM series. It maintains capacitance better across temperature and voltage, with only ±15% tolerance and minimal DC bias derating. While slightly more expensive, it provides a drop-in replacement with significantly enhanced reliability for applications where Y5V performance is insufficient.
• What derating practices should be applied when using the GRM31MF51A475ZA01L in a 5V system to maximize effective capacitance and longevity? To mitigate capacitance loss from DC bias, operate the GRM31MF51A475ZA01L well below its 10V rating. In a 5V system, applying 50% derating (i.e., using it at half the rated voltage) helps preserve a larger portion of its nominal 4.7µF value. However, even at 5V, expect up to 30–40% capacitance reduction due to Y5V characteristics. Monitor actual in-circuit capacitance with an LCR meter under bias for validation.
• Can the GRM31MF51A475ZA01L be used in parallel with other capacitor types for improved frequency response, and what are the potential pitfalls? While paralleling the GRM31MF51A475ZA01L with lower-value, high-frequency MLCCs (e.g., 100nF X7R) can extend bandwidth, the Y5V capacitor’s high ESR and ESL may introduce anti-resonant peaks. Careful placement and impedance profiling are required to avoid creating unintended noise amplification. Additionally, the bulk capacitor’s instability under load transients may negate the benefits of high-frequency decoupling.
• How does the cut-tape packaging of the GRM31MF51A475ZA01L influence automated assembly workflows? The GRM31MF51A475ZA01L is supplied in cut tape (CT) format, which is compatible with most SMT pick-and-place machines but lacks the continuous feed of full reels. This increases changeover frequency in high-volume production and may require manual handling or splicing. For scalable manufacturing, consider requesting full reel packaging or switching to a distributor-supported alternative with standard reel options.
• What reliability concerns arise from using the GRM31MF51A475ZA01L in high-humidity or thermal cycling environments? Although the part is RoHS compliant and lead-free, the Y5V dielectric is more susceptible to aging effects and microcracking under thermal cycling due to its ferroelectric properties. In high-humidity environments, moisture ingress combined with temperature swings can accelerate capacitance drift and increase failure risk. For harsh environments, hermetically sealed or polymer-based capacitors are more reliable.
• Is the GRM31MF51A475ZA01L appropriate for use in safety-critical filtering applications, such as in medical or avionics systems? No, the GRM31MF51A475ZA01L is not recommended for safety-critical applications due to the Y5V dielectric’s poor predictability, high tolerance, and significant parametric drift. Medical and avionics designs require capacitors with stable, well-characterized behavior (e.g., X7R or C0G), full qualification data, and long-term supply assurance—none of which are guaranteed with this discontinued, general-purpose component.
