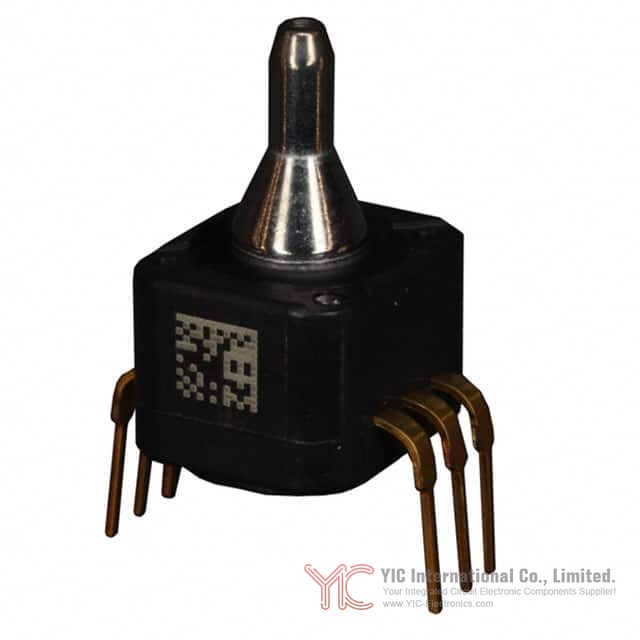

40PC150G2A

FAQFrequently Asked Questions

• What are the key design considerations when integrating the 40PC150G2A pressure sensor into a vented gauge system with fluctuating ambient temperatures? The 40PC150G2A is a vented gauge pressure sensor, meaning its reference is local atmospheric pressure. In environments with rapid temperature changes, thermal expansion of trapped air in the sensing cavity or connected tubing can induce measurement drift. To mitigate this, ensure the vent path remains unobstructed and avoid sealing the sensor in an airtight enclosure. Additionally, the operating temperature range of –45°C to 125°C implies that internal compensation is optimized for this band—operation near extremes may require external calibration or thermal stabilization for high-accuracy applications.
• How does the amplified analog output of the 40PC150G2A simplify signal conditioning compared to unamplified pressure transducers? The 40PC150G2A provides a pre-amplified 0.5 V to 4.5 V output over its 0 to 150 PSI range, eliminating the need for external op-amp stages or Wheatstone bridge excitation circuitry. This reduces BOM complexity, board space, and potential noise injection points. However, because the output is ratiometric to the 5 V supply, any ripple or instability on the 4.75–5.25 V supply rail will directly affect accuracy—use a low-noise LDO and adequate decoupling near the sensor.
• Can the 40PC150G2A be used in hydraulic systems approaching its maximum pressure rating of 300 PSI without risking long-term reliability? While the 40PC150G2A can withstand up to 300 PSI as a burst pressure limit, continuous operation near this threshold is not recommended. The specified operating pressure is 150 PSI, and sustained exposure to pressures significantly above this—even within the 300 PSI maximum—can accelerate diaphragm fatigue, hysteresis, and zero-shift. For hydraulic applications with pressure spikes, incorporate mechanical snubbers or select a sensor with a higher safety margin relative to system peak pressures.
• What PCB layout practices are critical when mounting the 40PC150G2A in a 6-DIP through-hole package in high-vibration environments? The 6-DIP module’s PC pin termination requires secure mechanical anchoring to resist fatigue from vibration. Use generous solder fillets, avoid sharp trace bends near pins, and consider strain relief via epoxy potting or bracketing if mounted on flexible PCBs. Additionally, keep analog output traces short and shielded from digital lines to preserve signal integrity, especially since the 0.5–4.5 V output has limited noise immunity without downstream filtering.
• Is the 40PC150G2A suitable for battery-powered portable instruments requiring low quiescent current? The 40PC150G2A draws supply current typical of amplified bridge sensors (typically 5–10 mA under 5 V), which may be excessive for long-duration battery operation. If power budget is tight, evaluate whether the built-in amplification justifies the current draw versus using a lower-power unamplified sensor with an external micropower ADC. Also note that the 4.75–5.25 V supply range excludes direct Li-ion or 3.3 V system compatibility without a boost regulator.
• How does the barbless 0.18" (4.57 mm) port style impact fluid interface design, and what tubing connections are recommended? The barbless port requires friction-fit or clamp-secured soft tubing (e.g., silicone or Tygon) with an inner diameter matching 4.57 mm. Unlike barbed fittings, it offers no inherent retention, so improper tubing selection or clamp placement can lead to leaks or disconnection under pressure cycling. For reliable sealing, use double O-ring adapters or custom manifolds that distribute clamping force evenly—avoid rigid tubing that may crack the port during thermal cycling.
• Are there drop-in compatible alternatives to the 40PC150G2A if Honeywell discontinues this part, and what parameters must be matched for seamless replacement? Potential alternatives include TE Connectivity’s MS5837-02BA or Amphenol’s NPP-301 series, but none offer identical 6-DIP through-hole packaging and vented gauge configuration. Critical matching parameters include: 0–150 PSI range, 0.5–4.5 V output span, 5 V supply, ±2.5% accuracy, and vented gauge reference. Mechanical compatibility (port size, pinout, height) must also be verified—many modern replacements use SMT packages, requiring PCB redesign.
• Does the 40PC150G2A meet industrial or automotive certification standards for use in harsh environments? The 40PC150G2A is RoHS compliant and rated for –45°C to 125°C operation, indicating suitability for industrial environments. However, it lacks explicit AEC-Q100 automotive qualification or IP-rated sealing. For under-hood or outdoor applications, additional conformal coating and environmental protection are advised. Always verify end-use compliance with relevant EMI/EMC and reliability standards, as the datasheet does not claim certification beyond basic regulatory requirements.
• What calibration or compensation strategies are needed when using the 40PC150G2A in high-precision applications despite its ±2.5% accuracy specification? The ±2.5% accuracy includes offset, span, and linearity errors over temperature. For precision use, implement a two-point calibration (at zero and full-scale pressure) in the actual operating temperature range. Store correction coefficients in firmware, and consider periodic auto-zero routines if the system allows pressure venting to atmosphere. Note that the analog output’s ratiometric nature means ADC reference should track the sensor’s 5 V supply to cancel common-mode errors.
• Can the 40PC150G2A be used in media other than air or non-corrosive gases without damaging the sensing element? The 40PC150G2A is designed for clean, dry, non-condensing gases compatible with its internal materials (typically silicon die with passivation and epoxy). Exposure to liquids, oils, particulates, or corrosive vapors (e.g., chlorine, ammonia) can degrade performance or cause failure. For liquid media, use an isolation diaphragm or select a media-compatible variant. Always consult Honeywell’s media compatibility guide—this part is not rated for direct liquid contact.
