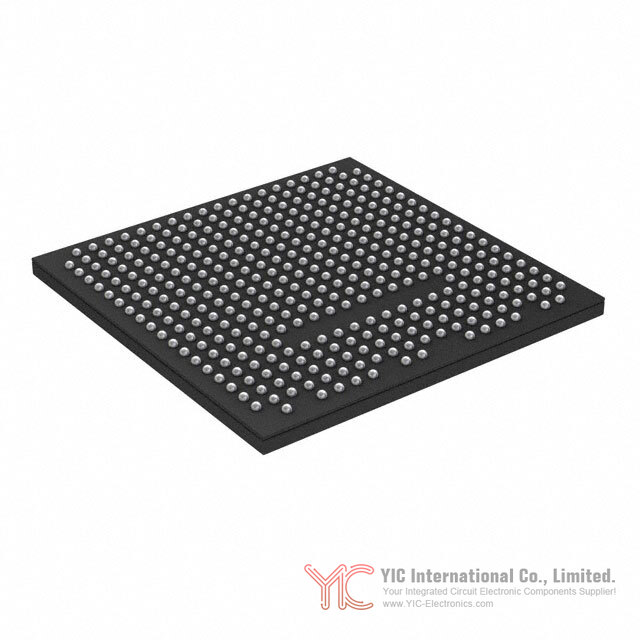

LFE5U-25F-6BG381I

Frequently Asked Questions (FAQ)

Q1. What are the key resource counts and capabilities of LFE5U-25F-6BG381I?

A1. LFE5U-25F-6BG381I belongs to the LFE5U-25 class of ECP5 FPGAs, providing tens of thousands of logic elements/cells, PFU-based slices with LUT5–LUT8 capability, sysMEM block RAM, distributed RAM in slices, and sysDSP slices for arithmetic. It offers 197 I/O pins in a 381-ball CABGA package and operates with a core supply in the 1.045 V to 1.155 V range. These resources support a wide spectrum of logic, buffering, and processing tasks, from control logic to multi-channel DSP pipelines.

Q2. How does LFE5U-25F-6BG381I handle DDR memory interfaces?

A2. LFE5U-25F-6BG381I leverages the ECP5 DDR support defined in Section 2.13 of the family data sheet. DQS grouping ties sets of data (DQ) pins to a specific DQS strobe for each byte lane, while the DQSBUF block uses DLL-calibrated delays to align the strobe with internal clocks. The DDRDLL ensures clock–data alignment, and the timing diagrams in Figures 3.6–3.12 describe RX/TX clock-centering and alignment modes. This combination enables robust DDR memory operation without external delay ICs when board layout and timing constraints are respected.

Q3. Does LFE5U-25F-6BG381I integrate SERDES blocks, and what does that mean for high-speed serial interfaces?

A3. LFE5U-25F-6BG381I is an LFE5U family device and does not include the integrated SERDES/PCS blocks present in LFE5UM/LFE5UM5G devices. High-speed serial interfaces such as PCI Express, SGMII, CPRI, or XAUI therefore require external SERDES/PHY components. However, the ECP5 family documentation provides detailed electrical and timing characteristics for these protocols, which can guide clocking, protocol control logic, and migration to SERDES-enabled ECP5 variants if needed. LFE5U-25F-6BG381I can implement protocol stacks, MAC layers, and sideband control while delegating the physical layer to external devices.

Q4. What I/O standards are supported by LFE5U-25F-6BG381I, and how are they organized in banks?

A4. LFE5U-25F-6BG381I uses sysI/O banks that support multiple standards, as listed in Section 2.14.3 and Tables 3.12–3.18 of the family data sheet. Single-ended standards include various LVCMOS and SSTL levels at appropriate bank voltages. Differential standards supported in the ECP5 family include LVDS, LVDS25E, BLVDS25, LVPECL33, MLVDS25, and SLVS, with DC characteristics defined per standard. Each sysI/O bank is powered independently to match the required standard, and on-chip programmable termination is available for many input modes, reducing external resistors. The 197 I/Os on LFE5U-25F-6BG381I are divided among these banks to balance signaling and power domains.

Q5. How does LFE5U-25F-6BG381I support on-chip memory requirements beyond block RAM?

A5. In addition to sysMEM block RAM, LFE5U-25F-6BG381I offers distributed RAM using LUTs inside slices. Table 2.3 describes the number of slices needed for various distributed RAM sizes. sysMEM blocks can be configured for different word widths and depths (Table 2.6) and support single-port, dual-port, and pseudo-dual-port modes. They can be pre-initialized at configuration to operate as ROMs. For larger on-chip memories, sysMEM blocks can be cascaded in depth and width. This hierarchy allows mapping of small control tables to distributed RAM and larger buffers or FIFOs to block RAM.

Q6. What power and thermal characteristics must be considered for LFE5U-25F-6BG381I?

A6. LFE5U-25F-6BG381I operates over an industrial junction temperature range of –40 °C to +100 °C. The core supply is specified between 1.045 V and 1.155 V, with recommended power supply ramp rates and POR thresholds given in Tables 3.3 and 3.4. Static supply currents are documented in Table 3.8 for the ECP5 family, with additional power consumption depending on clock frequency, toggle rates, and resource utilization. Designers should use the ECP5 power models in combination with the device’s thermal characteristics to ensure that the junction temperature remains within the specified range under worst-case operating conditions.

Q7. How is configuration managed on LFE5U-25F-6BG381I, and what options are available?

A7. LFE5U-25F-6BG381I uses the ECP5 sysCONFIG infrastructure. Configuration can be performed through parallel and serial interfaces as shown in Figures 3.15–3.22, and configuration timing is detailed in Table 3.42. Enhanced configuration options include multiple configuration sources and selectable MCLK frequencies (Table 2.16) to adjust configuration speed. An on-chip oscillator is available for internal configuration clocking where an external clock is not used. SEU support mechanisms help maintain configuration integrity in environments with radiation or noise, and the JTAG interface can be used both for boundary scan and for configuration tasks.

Q8. What test and debug capabilities does LFE5U-25F-6BG381I provide at the package level?

A8. LFE5U-25F-6BG381I provides IEEE 1149.1-compliant boundary scan, allowing testing of solder joints and interconnects without physical test access. JTAG port timing is defined in Section 3.32 and Figure 3.23. Boundary scan, combined with the 381-ball package pinout information (Section 4), enables structural board testing. Additionally, sysCONFIG and JTAG interfaces can support in-system programming and debug, for example by loading test bitstreams or capturing internal status via user-defined logic connected to JTAG.

Q9. How does the PFU/slice architecture in LFE5U-25F-6BG381I influence timing closure and resource utilization?

A9. Each PFU in LFE5U-25F-6BG381I contains multiple slices with LUTs capable of LUT5–LUT8 configurations and associated registers. This allows implementing complex combinational functions and arithmetic inside a single slice or a small group of slices. The ability to configure slices as distributed RAM or shift registers gives flexibility in implementing small memories and pipelined delay elements. The routing architecture offers both local and global interconnect paths. For timing closure, this means that critical datapaths can be localized within PFUs or adjacent PFUs, while less critical signals can use longer routes. Tables 2.1, 2.2, and 2.7 provide the resource and mode options available per slice and PFU, guiding synthesis and placement strategies.

Q10. Can designs on LFE5U-25F-6BG381I be migrated to other ECP5 densities or variants?

A10. Yes. LFE5U-25F-6BG381I is part of the LFE5U-25 density class within the ECP5 family. Section 2.19 (Density Shifting) and Section 5 (ECP5/ECP5-5G part number description and ordering) describe how designs can be scaled across densities and between LFE5U and LFE5UM/LFE5UM5G variants. Migration may allow increasing logic, memory, or SERDES resources while maintaining a similar design flow and, in some cases, similar or compatible packages and pinouts. Careful review of the pinout and bank allocation for each target device is required to maintain PCB compatibility.

Q11. What protections and guidelines exist for handling and assembly of LFE5U-25F-6BG381I?

A11. LFE5U-25F-6BG381I is RoHS3 compliant and REACH unaffected, with an MSL rating of 3 (168 hours), which implies specific floor life and baking requirements prior to reflow. ESD performance is specified in Section 3.8; proper ESD handling procedures should be followed during assembly and testing. The hot socketing specifications and requirements in Tables 3.5 and 3.6 define operating limits for insertion or removal of boards under power. Observing these guidelines helps to avoid damage from moisture, ESD, and uncontrolled power transients during manufacturing and deployment.

Q12. What are the main clocking considerations when designing with LFE5U-25F-6BG381I?

A12. The LFE5U-25F-6BG381I uses sysCLOCK PLLs to generate internal clock domains from external references. Designers must consider PLL lock ranges, jitter, and output frequencies described in Section 2.4 and Table 3.23. Global and edge clock networks (Sections 2.5 and 2.6) should be used for high-fanout, timing-critical signals, with clock dividers providing derived clocks when needed. For DDR interfaces, DDRDLL and DQSBUF alignment mechanisms (Sections 2.7 and 2.13.2) are crucial to meeting setup/hold times. When an internal oscillator is used (Section 2.18.3), its frequency tolerance must be taken into account for any timing-sensitive logic.

Q13. How does LFE5U-25F-6BG381I support differential high-speed I/O in the absence of on-chip SERDES?

A13. While LFE5U-25F-6BG381I does not integrate SERDES blocks, its sysI/O banks support various differential standards such as LVDS, LVDS25E, BLVDS25, LVPECL33, MLVDS25, and SLVS, as detailed in Tables 3.13–3.18. These interfaces can be used for high-speed source-synchronous links, point-to-point or multi-point differential buses, or for connecting to external SERDES/PHY devices. DC and AC characteristics, including output swing, common-mode levels, and termination recommendations, are provided in the data sheet to enable correct signal integrity design.

Q14. What configuration clock options does LFE5U-25F-6BG381I provide, and how do they impact startup time?

A14. LFE5U-25F-6BG381I can use an external clock or the on-chip oscillator to drive configuration via the sysCONFIG port. Table 2.16 lists selectable master clock (MCLK) frequencies during configuration. Higher MCLK frequencies reduce configuration time but increase instantaneous configuration power; lower frequencies reduce power at the cost of longer startup. Designers can choose an appropriate MCLK setting based on system power sequencing, startup timing requirements, and available clock sources.

Q15. How is the industrial temperature rating of LFE5U-25F-6BG381I reflected in design and validation?

A15. The industrial temperature range (–40 °C to +100 °C junction) for LFE5U-25F-6BG381I is backed by DC and timing characteristics that assume this operating range. When validating designs, timing analyses and power/thermal simulations should consider worst-case conditions across this temperature range. The derating timing tables (Section 3.16) and maximum I/O buffer speed (Table 3.21) help adjust design margins for temperature-related variations in propagation delay and switching performance.
