Product overview of STM32H743xI/G
The STM32H743xI/G devices from STMicroelectronics belong to the STM32H7 series of 32‑bit microcontrollers built around an Arm Cortex‑M7 core. Operating at up to 480 MHz and delivering 1027 DMIPS (2.14 DMIPS/MHz on Dhrystone 2.1), they target high-performance embedded systems requiring intensive computation, rich connectivity and advanced graphics or signal processing.
STM32H743xI/G integrates up to 2 Mbytes of embedded flash with read-while-write support and up to 1 Mbyte of RAM, a comprehensive analog front-end, extensive timer resources, hardware graphics accelerators, and up to 46 communication and analog interfaces. Devices are offered in multiple packages including LQFP and fine-pitch BGA, with up to 168 general-purpose I/Os and support for external memories via a flexible memory controller and Dual-mode Quad‑SPI.
Core architecture and processing performance of STM32H743xI/G
The STM32H743xI/G microcontrollers use a 32‑bit Arm Cortex‑M7 core featuring a double‑precision floating-point unit (FPU) and DSP instruction set. A Harvard architecture with separate buses and an L1 cache enables sustained performance at high clock frequencies.
Key architectural elements of STM32H743xI/G:
- Cortex‑M7 core running up to 480 MHz
- Double-precision FPU for floating-point intensive code
- 16 Kbytes instruction cache and 16 Kbytes data cache
- DSP instruction set for efficient signal-processing operations
- Memory Protection Unit (MPU) for region-based access control
The combination of high clock frequency, FPU and DSP instructions allows STM32H743xI/G to handle tasks such as motor control algorithms, real-time filtering, audio processing, image handling and complex control loops directly on the MCU. Cache and tightly coupled memories (ITCM/DTCM) help maintain throughput even when code and data reside in embedded flash or external memories.
In a practical scenario such as a motor drive with field-oriented control and real-time communication, STM32H743xI/G can execute control algorithms, handle encoder inputs, drive PWM outputs and process communication stacks concurrently, aided by the core performance and offload from DMA and timer engines.
Memory subsystem and boot architecture of STM32H743xI/G
The STM32H743xI/G memory architecture is designed to balance performance, flexibility and data integrity across internal and external resources.
Embedded flash and SRAM in STM32H743xI/G:
- Up to 2 Mbytes of embedded flash with read-while-write capability, supporting in-application programming and field firmware upgrades.
- Up to 1 Mbyte of RAM organized as:
- 192 Kbytes of TCM RAM:
- 64 Kbytes ITCM RAM for time-critical code tightly coupled to the core instruction bus.
- 128 Kbytes DTCM RAM for time-critical data, tightly coupled to the core data bus.
- Up to 864 Kbytes of user SRAM, accessible via AXI/AHB bus matrices, suitable for large data buffers, stacks and communication data.
- 4 Kbytes of SRAM in the backup domain, retained when powered through VBAT.
External memory support in STM32H743xI/G:
- Flexible Memory Controller (FMC) with up to 32‑bit data bus:
- Supports external SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR and NAND Flash.
- External memories can be clocked up to 100 MHz in synchronous modes.
- Dual-mode Quad‑SPI (QUADSPI) interface operating up to 133 MHz for serial NOR devices and code execution in place or memory-mapped accesses.
Boot modes of STM32H743xI/G support flexible system start-up:
- Boot from embedded flash for standard applications.
- Boot from system memory (ROM) for factory bootloader or mass-production programming.
- Boot from external memory when configured accordingly.
This architecture allows STM32H743xI/G to support applications that need both fast internal execution for critical tasks and expanded external memories for large graphical assets, file systems, or logs.
Power supply, voltage regulation and low-power modes of STM32H743xI/G
STM32H743xI/G devices are designed for 1.62 V to 3.6 V application supply and I/O operation, integrating a rich power management structure suitable for performance and standby scenarios.
Power supply scheme in STM32H743xI/G:
- 1.62 to 3.6 V supply range for core and I/Os.
- Dedicated USB power input embedding an internal 3.3 V regulator to supply USB PHYs, simplifying USB integration.
- Embedded main regulator (LDO) with configurable, scalable output to supply digital circuitry.
- Backup regulator (~0.9 V) feeding backup SRAM and RTC when the main supply is off, via VBAT pin.
- Embedded voltage reference (VREF+) for analog peripherals.
Power supervision in STM32H743xI/G:
- Power-on reset (POR), power-down reset (PDR), programmable voltage detector (PVD) and brown-out reset (BOR) monitor supply levels and ensure controlled start-up and shutdown.
- VBAT support with battery charging capability, enabling real-time clock and backup SRAM retention when the main supply is absent.
Voltage scaling and low-power modes in STM32H743xI/G:
- Six configurable voltage-scaling ranges in Run and Stop modes, allowing trade-offs between frequency and consumption.
- System low-power modes:
- Sleep mode with the regulator on, core clock stopped while peripherals and memories can remain clocked.
- Stop modes with regulator on and adjustable domains gated or powered down.
- Standby mode, with typical current down to 2.95 μA (Backup SRAM OFF, RTC/LSE ON).
- VBAT battery operating mode for RTC and backup domain retention.
Power domains in STM32H743xI/G:
- Three separate power/clock domains that can be independently clock-gated or switched off:
- D1 domain: high-performance capabilities (core, high-speed buses).
- D2 domain: communication peripherals and timers.
- D3 domain: reset, clock control and power management.
In a battery-powered data-logging system, STM32H743xI/G can run periodically in high-performance D1 mode to process data, then move most logic into Stop or Standby while retaining RTC and critical backup SRAM data via VBAT.
Clock, reset and interrupt architecture of STM32H743xI/G
Stable and flexible clocking, along with granular reset and interrupt structures, form the backbone of STM32H743xI/G system behavior.
Clock system in STM32H743xI/G:
- Internal oscillators:
- 64 MHz HSI.
- 48 MHz HSI48 (suitable for USB and RNG).
- 4 MHz CSI (internal low-power RC).
- 32 kHz LSI for watchdogs and backup timing.
- External oscillators:
- 4–48 MHz HSE for precision system clock.
- 32.768 kHz LSE for real-time clock and low-power timing.
- Three PLLs:
- One system PLL for core and main buses.
- Two kernel PLLs for peripheral clock domains, both with fractional mode for fine frequency tuning.
Reset management in STM32H743xI/G:
- Multiple reset sources managed by the Reset and Clock Controller (RCC):
- Power-on reset, brown-out reset, external reset pin, watchdog resets.
- Software resets for full system or specific domains.
Interrupt and event system in STM32H743xI/G:
- Nested Vectored Interrupt Controller (NVIC) supports numerous interrupt lines with priority levels and tail-chaining for fast servicing.
- Extended Interrupt and Event Controller (EXTI) enables configurable external interrupt/event lines mapped to GPIOs.
- SysTick timer provides periodic system tick generation for OS scheduling and time base.
This clock and interrupt structure allows STM32H743xI/G to maintain deterministic response while feeding multiple high-speed interfaces and timers from appropriately tuned clock sources.
GPIO, bus matrix and DMA architecture of STM32H743xI/G
STM32H743xI/G offers a versatile digital I/O and interconnect architecture that supports complex multi-peripheral use cases without overwhelming the CPU.
GPIO capabilities in STM32H743xI/G:
- Up to 168 general-purpose I/O ports, each with:
- Configurable mode (input, output, alternate function, analog).
- Interrupt capability via EXTI.
- Pull-up/pull-down configuration and configurable drive characteristics (subject to package and I/O bank).
Bus interconnect in STM32H743xI/G:
- Three bus matrices:
- One AXI matrix for high-bandwidth masters (core, MDMA, Chrom‑ART, FMC, Quad‑SPI).
- Two AHB matrices for other masters and slaves.
- Multiple AHB2-APB and AXI2-AHB bridges distribute traffic between core, memories and peripherals, enabling parallel transactions and reducing bottlenecks.
DMA resources in STM32H743xI/G:
- Four DMA controllers:
- One high-speed master DMA (MDMA) with linked-list support for complex transfer sequences and frame-based operations.
- Two dual-port DMAs with FIFO, ideal for continuous data streams and peripheral servicing.
- One basic DMA with request router capabilities for simple, low-overhead transfers.
In a data-acquisition and visualization system, for example, ADC samples can be moved by DMA into SRAM, processed by the CPU, and then sent via MDMA to a display buffer handled by Chrom‑ART, while communication interfaces such as Ethernet or SDMMC operate concurrently with their own DMA streams.
Embedded analog functions in STM32H743xI/G
STM32H743xI/G integrates a comprehensive set of analog peripherals suited to measurement, control and signal-conditioning tasks.
ADC subsystem in STM32H743xI/G:
- Three ADCs with up to 16‑bit maximum resolution.
- Up to 36 input channels across the three converters.
- Sampling rates up to 3.6 MSPS.
- Integrated temperature sensor connected to an ADC channel for on-chip temperature monitoring.
DAC and voltage reference in STM32H743xI/G:
- Two 12‑bit DAC channels with up to 1 MHz update rate, allowing generation of analog waveforms, setpoints and bias voltages.
- Internal voltage reference for analog peripherals, with specified reference voltage and calibration values to support accurate measurements.
Comparators and amplifiers in STM32H743xI/G:
- Two ultra-low-power comparators for threshold detection and zero-crossing detection.
- Two operational amplifiers with around 7.3 MHz bandwidth, suitable for signal conditioning in front of ADC inputs or for current-sense amplification and other analog tasks.
Digital filters for sigma-delta modulators (DFSDM) in STM32H743xI/G:
- DFSDM with 8 channels and 4 digital filters, enabling the interface to external sigma‑delta modulators and advanced digital filtering.
- Allows high-resolution, low-frequency measurements using external modulators and internal digital filtering, e.g. for precise current sensing in power-conversion systems.
Temperature and VBAT monitoring in STM32H743xI/G:
- Dedicated characteristics are defined for on-chip temperature sensor and VBAT monitoring functions, allowing systems to track thermal conditions and backup supply levels.
Graphics, imaging and user interface capabilities of STM32H743xI/G
For embedded systems with graphical user interfaces or image processing needs, STM32H743xI/G integrates specialized hardware blocks.
Graphics and display in STM32H743xI/G:
- LCD‑TFT controller (LTDC) that supports resolutions up to XGA, handling parallel RGB interfaces to TFT panels.
- Chrom‑ART (DMA2D) graphical hardware accelerator:
- Offloads CPU for operations such as pixel format conversion, image blending, fill operations and copy.
- Works in conjunction with MDMA and LTDC to accelerate GUI rendering and reduce memory bandwidth overhead.
- Hardware JPEG Codec:
- Compression and decompression of JPEG images in hardware, accelerating operations such as photo viewing, image logging, or streaming.
Camera and imaging in STM32H743xI/G:
- Digital camera interface (DCMI):
- Supports 8–14‑bit parallel camera data interface.
- Pixel clock up to 80 MHz.
- Designed for direct connection to image sensors, enabling capture into internal or external memory via DMA.
This combination allows applications such as human-machine interfaces with rich graphics or camera-based inspection systems to be implemented with a single STM32H743xI/G device, using internal accelerators to maintain responsiveness.
Timer and motor-control resources of STM32H743xI/G
STM32H743xI/G integrates a wide set of timer blocks, enabling precise timing, waveform generation and motor-control functions.
Timer overview in STM32H743xI/G:
- Up to 22 timers and watchdogs, including:
- One high-resolution timer (HRTIM1) with maximum resolution down to 2.1 ns, suitable for fine-grained control in power conversion and digital power supplies.
- Two 32‑bit timers with up to four input capture/output compare/PWM channels or pulse counter functions and quadrature encoder inputs, running up to 240 MHz.
- Two 16‑bit advanced motor-control timers (TIM1, TIM8) operating up to 240 MHz, supporting complementary outputs, dead-time insertion and center-aligned PWM.
- Ten 16‑bit general-purpose timers for timing, basic PWM, event counting and capture.
- Five 16‑bit low-power timers (LPTIM1–LPTIM5) for operation in low-power modes with flexible clock sources.
- Watchdog timers:
- Independent watchdog for system recovery from software failures.
- Window watchdog for detecting timing errors and runaway conditions.
- SysTick timer:
- Core-integrated, used for regular time bases, particularly with real-time operating systems.
Real-time clock (RTC), backup SRAM and backup registers in STM32H743xI/G:
- RTC with sub-second accuracy and hardware calendar.
- Backup domain with backup SRAM and registers, retained under VBAT supply.
- Designed for applications requiring date/time stamping and preservation across power cycles.
In a motor control drive, HRTIM1 and advanced-control timers can implement multi-channel high-frequency PWM with sub-nanosecond resolution, while general-purpose timers capture encoder feedback and low-power timers handle background housekeeping functions, all synchronized through the clock tree.
Communication and connectivity interfaces of STM32H743xI/G
The STM32H743xI/G family offers broad communication capability, suitable for industrial, consumer and networking applications.
Serial interfaces in STM32H743xI/G:
- I²C:
- Four I²C interfaces supporting Fast-mode Plus (FM+) with SMBus/PMBus support.
- USART/UART:
- Four USARTs and four UARTs with support for ISO7816 smartcard interface, LIN, IrDA and baud rates up to 12.5 Mbit/s.
- One low-power UART (LPUART) designed to operate efficiently in low-power modes and with flexible clocking.
- SPI/I²S:
- Six SPI interfaces, three of which can be configured as multiplexed duplex I²S audio-class interfaces using internal audio PLL or external clock (up to 150 MHz).
- Serial audio interface (SAI):
- Four SAI blocks for complex audio routing and multi-channel audio transport.
- SPDIFRX:
- Dedicated SPDIF receiver interface for digital audio.
Other wired communication interfaces in STM32H743xI/G:
- SD/SDIO/MMC:
- Two SDMMC interfaces supporting SD, SDIO and MMC cards up to 125 MHz, enabling storage or high-speed SDIO peripheral connections.
- CAN:
- Two CAN controllers with CAN FD support.
- One time-triggered CAN (TT-CAN) capable controller.
- USB:
- Two USB OTG interfaces:
- One full-speed (FS).
- One high-speed (HS) with full-speed support; HS operation uses internal PHY and dedicated regulator for crystal-less configurations with Link Power Management (LPM) and Battery Charging Detection (BCD).
- Ethernet:
- Ethernet MAC interface with dedicated DMA controller for efficient frame handling.
- HDMI-CEC:
- High-definition multimedia interface consumer electronics control (CEC) peripheral for AV equipment integration.
- SWPMI:
- Single Wire Protocol Master Interface for low-pin-count communication.
- MDIO slave:
- Management Data Input/Output slave interface for PHY management in Ethernet systems.
This set of interfaces allows STM32H743xI/G to serve as a central node connected simultaneously to industrial fieldbuses (CAN FD), storage (SDMMC), audio systems (SAI, SPDIFRX), user interfaces (USB, HDMI-CEC) and high-speed networks (Ethernet), aided by DMA for efficient data movement.
Security and identification features of STM32H743xI/G
STM32H743xI/G integrates hardware mechanisms to support firmware protection and secure operation.
Security functions in STM32H743xI/G:
- Readout protection (ROP) levels:
- Restrict external access to internal flash to protect intellectual property.
- PC-ROP (Program Counter-based ROP):
- Region-based execution control for additional code protection.
- Active tamper:
- Hardware support for tamper detection via dedicated inputs and internal mechanisms.
Random number generation and identification in STM32H743xI/G:
- True Random Number Generator (RNG):
- Uses three internal oscillators to generate entropy, suitable for protocols needing random values.
- 96‑bit unique device ID:
- Factory-programmed identifier enabling traceability and secure provisioning.
These features allow STM32H743xI/G to support secure firmware updates, protected communication sessions and device identification in networked environments.
Electrical characteristics and operating conditions of STM32H743xI/G
The STM32H743xI/G electrical characteristics are defined to guide system-level design and ensure reliable operation across conditions.
General operating conditions for STM32H743xI/G:
- Supply voltage: 1.62 V to 3.6 V.
- Operating ambient temperature (TA): −40 °C to +85 °C for specified variants.
- Current characteristics:
- Detailed consumption figures are provided for Run, Sleep, Stop, Standby and VBAT modes, with dependencies on clock configuration, supply voltage and temperature.
- Thermal characteristics:
- Junction-to-ambient and junction-to-case parameters available per package to support thermal design.
Clock characteristics in STM32H743xI/G:
- External clock input ranges:
- High-speed external clock: 4–48 MHz, with specified duty cycle and jitter limits.
- Low-speed external clock: 32.768 kHz.
- Internal oscillator characteristics:
- HSI at 64 MHz, HSI48 at 48 MHz, CSI at 4 MHz and LSI at 32 kHz with specified accuracy and temperature drift.
- PLL characteristics:
- Ranges for multipliers/dividers and resulting frequency limits, ensuring valid system and peripheral clock configurations.
I/O and EMC characteristics in STM32H743xI/G:
- I/O current injection and port characteristics:
- Define maximum allowed injection currents and voltage thresholds, guiding protection and interface design.
- EMC characteristics:
- Electrostatic discharge (ESD) and electromagnetic compatibility behavior, along with absolute maximum ratings for electrical sensitivity.
Analog performance characteristics in STM32H743xI/G:
- ADC parameters:
- Resolution, linearity, sampling time, reference dependence and noise characteristics.
- DAC, comparator, operational amplifier, DFSDM, DCMI and LTDC each have dedicated electrical and timing specifications, facilitating precise analog and mixed-signal design.

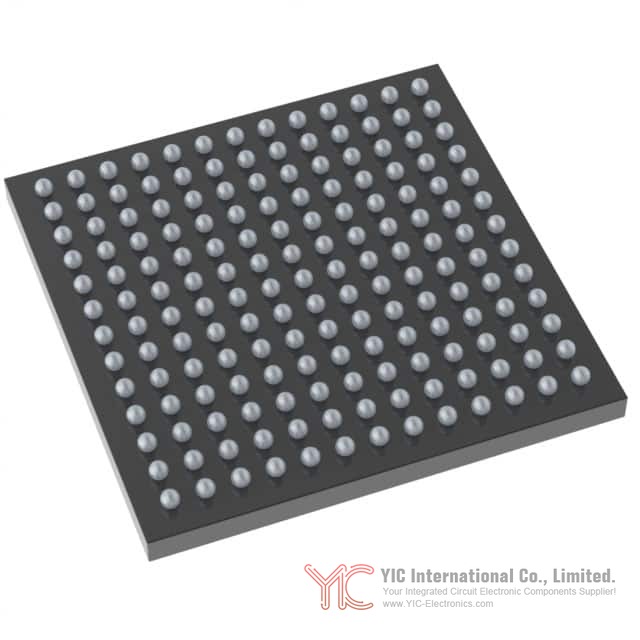

Package options and pinout structure for STM32H743xI/G
STM32H743xI/G is offered in several package types to match board-density and I/O-count requirements.
Package portfolio for STM32H743xI/G:
- LQFP100.
- LQFP144.
- LQFP176.
- LQFP208.
- TFBGA100 (14 × 14 mm).
- UFBGA169 (8 × 8 mm and 7 × 7 mm variants).
- UFBGA176+25 (10 × 10 mm).
- TFBGA240+25 (14 × 14 mm).
All packages are ECOPACK2 compliant. The number of available GPIOs depends on the chosen package, with up to 168 I/O ports.
Pinout and alternate functions in STM32H743xI/G:
- Each device pin can support multiple alternate functions, mapped to peripherals such as USART, SPI, I²C, timers, SDMMC, FMC, QUADSPI, DCMI, LTDC and others.
- Tables specify alternate function selections for ports A through K, enabling flexible pin assignment.
Thermal characteristics:
- Package-specific thermal parameters are provided to aid in layout decisions, such as copper area, via placement and airflow considerations to maintain junction temperature within allowable limits.
In a compact embedded imaging system, for example, a UFBGA169 7 × 7 mm STM32H743xI/G can connect simultaneously to a DCMI camera, LTDC-based display, external SDRAM via FMC and multiple serial interfaces, while still maintaining a small PCB footprint.
Conclusion on STM32H743xI/G deployment
STM32H743xI/G microcontrollers combine a 480 MHz Cortex‑M7 core, extensive embedded memory, rich connectivity and advanced graphics and analog subsystems in a scalable package lineup. The architecture balances raw processing performance with offload engines such as MDMA, Chrom‑ART, JPEG codec and DFSDM, while the power architecture enables both high-throughput and low-power operation across multiple domains.
By integrating a broad collection of communication interfaces, timers, analog peripherals and security mechanisms, STM32H743xI/G can serve as a single-chip platform for applications ranging from motor drives and digital power to human–machine interfaces, industrial networking and audio/video-centric systems. The detailed electrical, timing and package data supports precise system design and qualification across a wide range of operating conditions.
Frequently Asked Questions (FAQ)
- Q1. What are the main performance advantages of STM32H743xI/G compared with other microcontrollers in the STM32 family?
-
- A1. STM32H743xI/G devices provide up to 480 MHz core frequency on a Cortex‑M7 with double-precision FPU and DSP instructions, delivering around 1027 DMIPS. They also integrate L1 instruction and data caches, up to 2 Mbytes of flash with read‑while‑write, and up to 1 Mbyte of RAM including TCM regions. The combination of high clock speed, cache, TCM and a rich set of offload engines (MDMA, Chrom‑ART, JPEG codec, DFSDM) enables higher computational throughput than lower-performance STM32 families.
- Q2. How does the memory architecture of STM32H743xI/G support demanding real-time applications?
-
- A2. STM32H743xI/G uses a layered memory architecture: time-critical code and data can reside in ITCM and DTCM RAM directly attached to the Cortex‑M7 core, while larger application code and buffers can be placed in internal flash and AXI/AHB SRAM. The presence of caches, an AXI bus matrix and external memory interfaces (FMC for SDRAM/NOR/NAND and QUADSPI for serial Flash) allows applications to combine fast real-time control with large data storage or frame buffers. Read‑while‑write flash allows firmware updates or data storage while the main application continues to run.
- Q3. Can STM32H743xI/G support complex GUIs with external displays and images?
-
- A3. Yes. STM32H743xI/G integrates an LCD‑TFT controller capable of driving displays up to XGA resolution, a Chrom‑ART (DMA2D) graphics accelerator for fast image blending and color conversion, and a hardware JPEG codec for image compression and decompression. With FMC and QUADSPI interfaces, external SDRAM and serial flash can be attached for frame buffers and graphical assets. This combination allows implementation of responsive graphical user interfaces while keeping CPU load manageable.
- Q4. Is STM32H743xI/G suitable for digital power and high-precision motor-control applications?
-
- A4. STM32H743xI/G includes a high-resolution timer (HRTIM1) with resolution down to 2.1 ns, advanced motor-control timers (TIM1, TIM8) with complementary outputs and dead-time insertion, and fast 16‑bit ADCs up to 3.6 MSPS. DFSDM, comparators and operational amplifiers further support current and voltage sensing and advanced control algorithms. These features make it suitable for digital power supplies, inverters, motor drives and other systems requiring precise PWM timing and fast feedback loops.
- Q5. How does STM32H743xI/G handle low-power operation while maintaining real-time capabilities?
-
- A5. STM32H743xI/G supports several low-power modes (Sleep, Stop, Standby and VBAT) and divides the system into three power/clock domains (D1, D2, D3) that can be independently clock-gated or powered down. Voltage scaling in Run and Stop modes allows adjusting supply levels for different frequency targets. Low-power timers, LPUART and the RTC can remain functional in low-power modes, enabling wake-up from low-power states on events such as timers, external interrupts or communication activity, while keeping current consumption low (e.g., around 2.95 μA in Standby with RTC/LSE on and Backup SRAM off).
- Q6. What communication protocols do STM32H743xI/G devices support for industrial networking?
-
- A6. STM32H743xI/G offers multiple interfaces relevant for industrial networking: two CAN controllers with CAN FD support, one time-triggered CAN (TT-CAN) controller, Ethernet MAC with dedicated DMA, four I²C interfaces (FM+), multiple USART/UARTs with LIN and ISO7816 support, two SDMMC interfaces and two USB OTG ports (FS and HS/FS). These can be combined to build gateways between Ethernet, CAN FD, USB and SDIO-based devices or to implement redundant communication paths in industrial systems.
- Q7. How is USB implemented on STM32H743xI/G, and is an external PHY required?
-
- A7. STM32H743xI/G includes two USB OTG controllers: one for full-speed and one for high-speed with full-speed fallback. A dedicated USB power input embeds a 3.3 V internal regulator for the USB PHY, enabling crystal-less solutions with Link Power Management (LPM) and Battery Charging Detection (BCD) in supported configurations. Whether an external PHY is needed depends on the specific USB speed and interface requirements; the internal PHY supports integrated solutions for common full-speed and some high-speed configurations.
- Q8. What storage options can be used with STM32H743xI/G?
-
- A8. STM32H743xI/G supports multiple storage types: on-chip flash (up to 2 Mbytes), external parallel memories via FMC (SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR, NAND), serial memories via Dual-mode Quad‑SPI (up to 133 MHz), and card-based storage via two SDMMC interfaces for SD, SDIO and MMC. This enables systems to combine internal code storage with external non-volatile memory for data logging and external SDRAM for large buffers.
- Q9. How are security and firmware protection handled in STM32H743xI/G?
-
- A9. STM32H743xI/G includes readout protection (ROP) levels to restrict access to internal flash and prevent unauthorized code extraction. PC‑ROP provides more nuanced control by restricting execution or access based on program counter location. Active tamper features detect tampering events, and a unique 96‑bit ID supports device authentication and secure provisioning. The integrated RNG provides entropy needed for cryptographic protocols, while the MPU can restrict memory region access within firmware.
- Q10. What are the operating temperature limits and environmental classifications of STM32H743xI/G?
-
- A10. STM32H743xI/G devices are specified for ambient temperatures from −40 °C to +85 °C (TA) for the listed variants, with detailed electrical characteristics across the range. They are RoHS (RoHS3) compliant and REACH unaffected. Moisture Sensitivity Level (MSL) is specified as level 3 (168 hours), guiding storage and reflow processes. Designers should consider package-specific thermal characteristics and ensure that junction temperature remains within specified limits under worst-case power dissipation.
- Q11. How does VBAT operation work on STM32H743xI/G and what can be retained during power loss?
-
- A11. VBAT on STM32H743xI/G powers the backup domain, including the RTC, backup SRAM (4 Kbytes) and backup registers, when the main supply is off. A backup regulator (~0.9 V) enables low-power operation of this domain from a battery or supercapacitor source. With VBAT connected, date/time and selected variables stored in backup SRAM or registers can be preserved across power cycles. Battery-charging capability is available on VBAT to simplify integration with rechargeable backup sources.
- Q12. What support is provided in STM32H743xI/G for audio applications?
-
- A12. STM32H743xI/G is equipped with several audio-related peripherals: four SAI interfaces for flexible audio routing and multichannel formats, three SPI interfaces that can be multiplexed as duplex I²S with an internal audio PLL or external clock, a dedicated SPDIFRX receiver for digital audio, and high-performance timers for PWM-based audio schemes if needed. High-performance core and DMA engines allow running audio processing algorithms while streaming audio data over SAI, I²S or SPDIFRX.
- Q13. How does STM32H743xI/G facilitate debugging and trace during development?
-
- A13. STM32H743xI/G includes SWD and JTAG debug interfaces for standard debugging and programming operations. A 4‑Kbyte embedded trace buffer is available, supporting trace capture without external trace memory. Together with the NVIC, SysTick and on-chip debug infrastructure, these interfaces support breakpoints, single-step execution, trace, and performance profiling.
- Q14. What are the key considerations for external clock design with STM32H743xI/G?
-
- A14. For HSE and LSE, external crystals or oscillators must meet specified frequency ranges (4–48 MHz for HSE and 32.768 kHz for LSE), loading capacitance and drive levels as given in the electrical characteristics. The HSE oscillator includes parameters such as maximum ESR and start-up time; LSE requires low-leakage PCB layout to ensure stable oscillation. Alternatively, external clock sources can be provided directly to the relevant pins, respecting allowed duty cycles and amplitude levels.
- Q15. How does the DMA architecture of STM32H743xI/G reduce CPU load in data-intensive applications?
-
- A15. STM32H743xI/G uses multiple DMA engines: two dual-port DMAs with FIFO for continuous peripheral-to-memory and memory-to-peripheral transfers, one MDMA master DMA with linked-list support for complex or scatter/gather patterns, and one basic DMA with flexible request routing. These controllers can handle transfers for ADC, DCMI, LTDC, Chrom‑ART, SDMMC, Ethernet, SPI, I²C, USART and other peripherals without CPU intervention, freeing the core to perform computation while large data blocks move concurrently between internal and external memories.
