CC1210KKX5RGBB106

Product Overview of the CC1210KKX5RGBB106

The YAGEO CC1210KKX5RGBB106 is a high-capacitance multilayer ceramic capacitor (MLCC) designed to meet the demanding requirements of modern electronic systems. Specified at 10 microfarads with a 35-volt rating and X5R dielectric material, this component represents a balance between performance, reliability, and practical application across diverse industrial and consumer sectors. The 1210 package size (3225 metric equivalent) positions this capacitor within the mid-range of available form factors, offering sufficient capacitance density while maintaining compatibility with standard surface-mount assembly processes.

Core Functionality and Operating Principles of the CC1210KKX5RGBB106

Noise Reduction and Signal Stability

Electronic circuits operate within environments containing multiple noise sources. Electromagnetic interference (EMI), equipment-generated noise, and switching transients can degrade signal integrity and introduce operational errors such as crosstalk, false triggering, and incorrect logic levels. The CC1210KKX5RGBB106 addresses these challenges through its high capacitance value, which provides a low-impedance path for noise currents across a broad frequency spectrum. By shunting unwanted signal components to ground, the capacitor maintains voltage stability and preserves the integrity of critical circuit nodes.

Bypassing Function in the CC1210KKX5RGBB106

Bypassing represents one of the primary applications for high-capacitance MLCCs like the CC1210KKX5RGBB106. In filtering circuits, the capacitor reduces high-frequency noise components present on power supply rails. The X5R dielectric material exhibits minimal capacitance variation across the operating frequency range, ensuring consistent filtering performance. When placed in close proximity to integrated circuits, transistors, or other active devices, the CC1210KKX5RGBB106 effectively attenuates supply voltage ripple and transient noise, allowing downstream components to operate with cleaner power delivery.

Decoupling Function in the CC1210KKX5RGBB106

Decoupling extends beyond simple noise reduction to maintain voltage independence between circuit sections. The CC1210KKX5RGBB106 functions as a low-pass filter on the supply line, isolating load transients generated by one circuit block from affecting others. The 10-microfarad capacitance provides sufficient charge storage to absorb sudden current demands when devices switch states. This buffering action prevents voltage sag that could compromise circuit operation or trigger false logic transitions. The decoupling function becomes increasingly important in systems with multiple power domains or where rapid load changes occur.

Smoothing Function in the CC1210KKX5RGBB106

When AC signals undergo rectification to produce DC voltage, the resulting waveform typically contains significant ripple components. The CC1210KKX5RGBB106 absorbs this ripple current, smoothing the voltage before it reaches downstream circuits. The capacitance value must be sized appropriately to handle the ripple current magnitude without excessive voltage variation. In power supply applications, multiple CC1210KKX5RGBB106 units may be deployed in parallel to achieve the required smoothing performance while distributing thermal stress across multiple components.

Signal Coupling Applications of the CC1210KKX5RGBB106

Capacitors inherently pass AC signals while blocking DC components once charged to the applied DC voltage. This characteristic makes the CC1210KKX5RGBB106 suitable for AC coupling applications where DC voltage separation between circuit blocks is required while AC signals must pass through. The coupling function finds widespread use in audio amplifiers, RF circuits, and multi-stage amplification systems where each stage operates at different DC bias levels but must receive AC signal information from preceding stages.

Technical Specifications and Design Characteristics of the CC1210KKX5RGBB106

Electrical Characteristics and Performance Parameters

The CC1210KKX5RGBB106 delivers 10 microfarads of capacitance with a tolerance of ±10 percent, meeting standard EIA specifications for high-capacitance MLCCs. The 35-volt rating establishes the maximum continuous voltage that can be safely applied without risk of dielectric breakdown. The X5R dielectric classification indicates temperature stability across the -55°C to +85°C operating range, with capacitance variation limited to ±15 percent across this temperature span. This temperature stability makes the CC1210KKX5RGBB106 suitable for applications experiencing significant thermal cycling or operating in temperature-controlled environments.

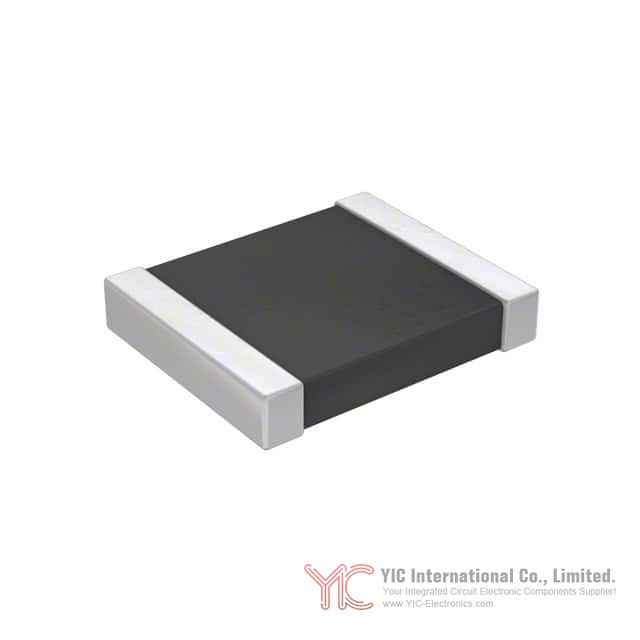

Physical Dimensions and Package Configuration

The 1210 package designation corresponds to metric dimensions of 3.2 millimeters by 2.5 millimeters, with a thickness of approximately 2.5 millimeters. This form factor provides a practical balance between capacitance density and ease of handling during assembly. The component features lead-free termination technology compatible with both reflow and wave soldering processes, meeting modern environmental and manufacturing standards. The CC1210KKX5RGBB106 is supplied in tape-and-reel packaging optimized for automatic surface-mount device (SMD) placement equipment, enabling high-speed production assembly.

Dielectric Material and Temperature Stability

The X5R dielectric material employed in the CC1210KKX5RGBB106 represents a mid-range choice between the temperature-stable NP0 formulation and the higher-capacitance-density Y5V material. X5R dielectrics provide superior temperature stability compared to Y5V while offering greater capacitance density than NP0. This positioning makes the CC1210KKX5RGBB106 well-suited for applications requiring reliable performance across moderate temperature ranges without the cost premium associated with NP0 components or the performance variability of Y5V materials.

Advanced Applications of the CC1210KKX5RGBB106 Across Industry Sectors

Industrial Applications

Industrial systems demand components capable of withstanding harsh operating conditions while maintaining consistent performance. The CC1210KKX5RGBB106 finds application in automation control systems, safety devices, and industrial power management circuits. In switched-mode power supplies (SMPS), the capacitor provides energy storage and filtering functions essential for stable DC output. Smart grid meters employ the CC1210KKX5RGBB106 for noise suppression and voltage regulation in measurement and communication circuits. DC/DC converter applications benefit from the capacitor's ability to handle rapid load transients and maintain output voltage stability.

Consumer Electronics Applications

Consumer devices require cost-effective components that deliver reliable performance across diverse operating conditions. The CC1210KKX5RGBB106 appears in lighting systems, entertainment equipment, and home appliances where power supply filtering and noise suppression are necessary. The component's moderate cost and availability in standard package sizes make it attractive for high-volume consumer applications. Computing systems and peripherals utilize the CC1210KKX5RGBB106 for local power supply decoupling near processor cores and memory modules, where transient current demands can reach several amperes.

Power Management and Energy Applications

Power management circuits require capacitors capable of handling significant voltage and current stresses. The CC1210KKX5RGBB106 serves in DC/DC converter output filtering, where it smooths the converter output and provides transient response. Alternative energy systems including solar and wind installations employ the capacitor in power conditioning and energy storage circuits. The 35-volt rating accommodates typical photovoltaic panel voltages and intermediate bus voltages found in distributed power architectures.

Telecommunications Infrastructure

Telecommunications equipment operates continuously with minimal downtime tolerance. The CC1210KKX5RGBB106 provides filtering and decoupling functions in infrastructure equipment, mobile solutions, and networking hardware. The component's reliability and temperature stability support operation in outdoor installations and equipment cabinets where thermal management may be limited.

Manufacturing Excellence and Reliability of the CC1210KKX5RGBB106

Material Technology and Production Processes

YAGEO manufactures the CC1210KKX5RGBB106 through vertically-integrated processes controlling material preparation, thin-film processing, production technology, and base metal technology. This vertical integration enables precise control over dielectric material composition and ceramic layer thickness, directly influencing capacitance density and performance characteristics. The manufacturing process emphasizes high dispersion quality, which produces uniform ceramic structure and improves DC bias coefficient performance. Thinner ceramic layers enable higher capacitance values within the same physical package size, a capability continuously refined through ongoing research and development.

Quality Control and Performance Standards

The CC1210KKX5RGBB106 undergoes rigorous quality control procedures ensuring consistent performance across production batches. YAGEO's manufacturing infrastructure includes nine production sites worldwide, enabling distributed manufacturing while maintaining standardized quality protocols. The company's position as the world's third-largest MLCC manufacturer reflects decades of experience in ceramic capacitor production and continuous process improvement. Highly-reliable tolerance specifications ensure that capacitance values remain within specified limits throughout the component's operational life.

Termination Technology and Soldering Compatibility

The CC1210KKX5RGBB106 features highly-resistant termination metal that withstands both reflow and wave soldering processes without degradation. Lead-free termination technology complies with environmental regulations while maintaining excellent solder joint reliability. The component's compatibility with automated SMD placement equipment and standard PCB assembly processes minimizes manufacturing complexity and reduces assembly costs.

Noise Filtering and Protection Capabilities of the CC1210KKX5RGBB106

Snubber and Filter Applications

When inductive circuits open suddenly, the collapsing magnetic field generates large voltage transients across the switching element. The CC1210KKX5RGBB106 can function as a snubber capacitor, providing a discharge path for this energy and protecting switch contacts from damage. In smaller-scale circuits, these transients generate radio frequency interference (RFI) that radiates into surrounding circuits and equipment. The CC1210KKX5RGBB106 absorbs this RFI energy, preventing interference with sensitive analog or RF circuits. Snubber applications often employ the capacitor in series with a low-value resistor, which dissipates energy and minimizes RFI generation.

RFI Suppression and Circuit Protection

The CC1210KKX5RGBB106 participates in LC filter networks where inductors and capacitors work together to suppress both conducted and radiated interference. In low-pass filter configurations, the capacitor attenuates high-frequency noise while passing desired signal components. High-pass filter applications use the CC1210KKX5RGBB106 to block DC components while passing AC signals. These filtering functions protect sensitive circuits from external interference sources and prevent the component's own circuit from radiating interference into the electromagnetic environment.

Conclusion

The YAGEO CC1210KKX5RGBB106 represents a mature, well-established solution for high-capacitance filtering and energy storage requirements across industrial, consumer, and telecommunications applications. The combination of 10-microfarad capacitance, 35-volt rating, X5R temperature stability, and 1210 package size addresses the practical needs of modern electronic systems requiring reliable noise suppression, voltage regulation, and transient response. Manufacturing excellence through vertical integration and quality control procedures ensures consistent performance and long-term reliability. The component's compatibility with standard assembly processes and availability in high-volume quantities make it a practical choice for designers and procurement personnel evaluating capacitor solutions for diverse applications.

Frequently Asked Questions (FAQ)

Q1. What distinguishes the X5R dielectric material used in the CC1210KKX5RGBB106 from other dielectric options?

A1. The X5R dielectric provides temperature stability across the -55°C to +85°C range with capacitance variation limited to ±15 percent, positioning it between the highly stable NP0 material and the higher-capacitance-density Y5V material. This balance makes X5R suitable for applications requiring moderate temperature stability without the cost premium of NP0 or the performance variability of Y5V. The CC1210KKX5RGBB106's X5R formulation maintains consistent filtering performance across typical industrial and consumer operating temperature ranges.

Q2. How does the 10-microfarad capacitance of the CC1210KKX5RGBB106 compare to other available capacitance values in YAGEO's high-capacitance MLCC portfolio?

A2. YAGEO's high-capacitance MLCC range spans from 1 microfarad to 220 microfarads depending on package size. The CC1210KKX5RGBB106's 10-microfarad value represents a mid-range offering suitable for general-purpose filtering, decoupling, and energy storage applications. Smaller values provide higher frequency response and lower impedance at very high frequencies, while larger values offer greater energy storage capacity for applications with significant transient current demands. The 1210 package size limits the maximum practical capacitance to approximately 100 microfarads, making the 10-microfarad value a common choice for balanced performance.

Q3. Can the CC1210KKX5RGBB106 be used in both reflow and wave soldering assembly processes?

A3. Yes, the CC1210KKX5RGBB106 features lead-free termination technology compatible with both reflow and wave soldering processes. The highly-resistant termination metal withstands the thermal stresses of both assembly methods without degradation. This dual-process compatibility provides flexibility in manufacturing environments and allows the component to be used in mixed-technology PCB assemblies where some components require wave soldering while others use reflow processes.

Q4. What is the significance of the ±10 percent capacitance tolerance specification for the CC1210KKX5RGBB106?

A4. The ±10 percent tolerance indicates that the actual capacitance value will fall within the range of 9 to 11 microfarads when measured at specified conditions. This tolerance is typical for high-capacitance MLCCs and reflects the inherent variability in ceramic material properties and manufacturing processes. For applications where tighter tolerance is required, YAGEO offers alternative products with ±5 percent or ±20 percent specifications. Circuit designers must account for this tolerance range when calculating filtering performance, energy storage capacity, or time-constant values in RC circuits.

Q5. How should the CC1210KKX5RGBB106 be positioned relative to the components it serves in decoupling applications?

A5. Decoupling effectiveness depends on minimizing the distance between the CC1210KKX5RGBB106 and the component being decoupled. Placement should position the capacitor as close as possible to the power supply pins of the IC or device, ideally within 5 to 10 millimeters. Short PCB traces connecting the capacitor to power and ground planes reduce parasitic inductance, which would otherwise limit high-frequency filtering performance. In high-speed digital circuits, multiple CC1210KKX5RGBB106 units may be deployed around a single IC to ensure adequate decoupling across the frequency spectrum.

Q6. What DC bias coefficient effects should be considered when using the CC1210KKX5RGBB106 in circuits with varying supply voltages?

A6. The CC1210KKX5RGBB106's capacitance decreases as applied DC voltage increases, a characteristic known as DC bias coefficient. At the full 35-volt rating, capacitance may decrease by 10 to 20 percent compared to the nominal value measured at low voltage. This effect becomes significant in circuits where the supply voltage varies substantially or where precise capacitance values are required. Circuit designers should account for this reduction when calculating filtering performance or energy storage capacity. YAGEO's high-dispersion manufacturing process minimizes DC bias coefficient variation, improving predictability across production batches.

Q7. Can multiple CC1210KKX5RGBB106 units be connected in parallel to increase total capacitance or improve transient response?

A7. Yes, parallel connection of multiple CC1210KKX5RGBB106 units increases total capacitance and reduces equivalent series resistance (ESR), improving transient response and current-handling capability. Parallel connection is common in power supply filtering where a single capacitor cannot provide sufficient capacitance or current capacity. When connecting capacitors in parallel, ensure that all units are rated for the same voltage and that PCB layout minimizes differences in trace lengths to the power and ground planes, which could cause unequal current distribution.

Q8. What environmental and storage conditions should be maintained for the CC1210KKX5RGBB106 before assembly?

A8. The CC1210KKX5RGBB106 should be stored in dry conditions with relative humidity below 60 percent and temperature between 15°C and 35°C. Exposure to high humidity can cause moisture absorption in the ceramic material, which may lead to reduced insulation resistance or dielectric breakdown during soldering. Components should be removed from sealed packaging only immediately before assembly. If components are exposed to high humidity for extended periods, they should be baked at 125°C for 24 hours before soldering to drive off absorbed moisture.

Q9. How does the CC1210KKX5RGBB106 perform in applications requiring rapid charge and discharge cycles?

A9. The CC1210KKX5RGBB106 is designed for filtering and decoupling applications involving continuous or frequent charge-discharge cycles. The X5R dielectric material exhibits good cycle life and maintains stable performance across millions of cycles. However, applications involving extremely high current pulses or very rapid charge-discharge rates may generate significant heat within the capacitor. In such applications, thermal management and adequate spacing between components become important to prevent localized temperature rise that could degrade performance or reduce component life.

Q10. What is the relationship between the CC1210KKX5RGBB106's package size and its frequency response characteristics?

A10. The 1210 package size represents a compromise between capacitance density and parasitic inductance. Larger packages generally exhibit higher parasitic inductance due to longer internal current paths, which limits high-frequency performance. The CC1210KKX5RGBB106 provides effective filtering up to several megahertz, making it suitable for most industrial and consumer applications. For applications requiring filtering at frequencies above 10 megahertz, smaller package sizes like 0603 or 0805 may provide better high-frequency performance despite lower individual capacitance values.

Q11. How does the CC1210KKX5RGBB106 contribute to electromagnetic compatibility (EMC) in electronic systems?

A11. The CC1210KKX5RGBB106 reduces both conducted and radiated emissions by filtering noise from power supply lines and absorbing transient energy that would otherwise radiate into the electromagnetic environment. By maintaining stable voltage levels on power and ground planes, the capacitor reduces the amplitude of switching transients that generate electromagnetic radiation. In systems designed to meet EMC standards, the CC1210KKX5RGBB106 typically works in combination with inductors and other filtering components to achieve required emission limits. Proper placement near noise sources maximizes the capacitor's contribution to overall system EMC performance.

Q12. What cost considerations should influence the selection of the CC1210KKX5RGBB106 versus alternative capacitor technologies?

A12. The CC1210KKX5RGBB106 offers cost-effective performance compared to film capacitors or electrolytic capacitors of equivalent capacitance. MLCC technology provides superior frequency response, smaller package size, and longer operational life compared to electrolytic alternatives. The high-volume availability of the CC1210KKX5RGBB106 and standard package size contribute to competitive pricing in high-volume applications. For cost-sensitive applications, designers should evaluate whether the full 10-microfarad capacitance is necessary or whether smaller values might suffice, as capacitance directly influences component cost.
