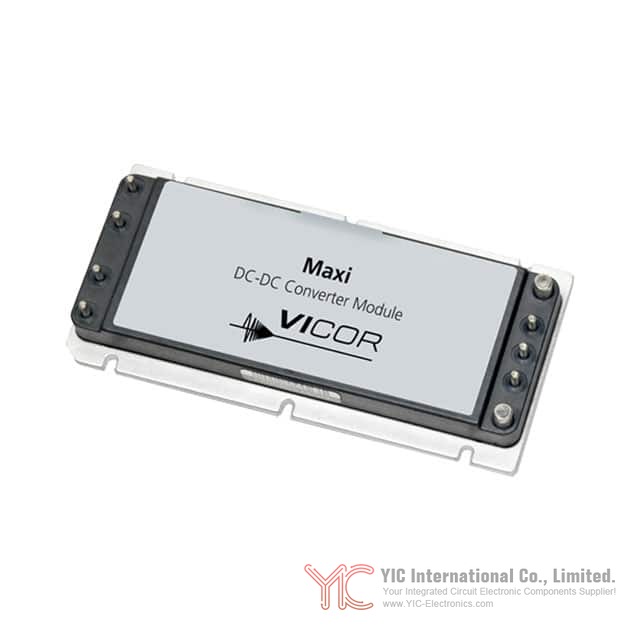

V24A48T300B

FAQFrequently Asked Questions

• What are the key thermal management considerations when using the Vicor V24A48T300B DC DC converter in high-performance applications? When deploying the Vicor V24A48T300B, it is crucial to monitor the thermal environment due to its operating temperature range of -40°C to 100°C. Effective heat sinking and adequate airflow are necessary to maintain optimal performance and avoid thermal shutdown. Given its efficiency rating of 87.10%, the converter will dissipate some heat under load, so assessing the maximum ambient temperatures and implementing thermal relief measures in your PCB design is recommended.
• How do I ensure compatibility between the Vicor V24A48T300B and other components in my system? To guarantee compatibility with the Vicor V24A48T300B, check that the input voltage ranges from 18V to 36V match your system's output requirements. Additionally, since this module delivers a single output of 48V at a maximum current of 6.25A, ensure that any load connected does not exceed these specifications. Proper matching of electrical characteristics, including the voltage isolation rating of 3 kV, is also essential to prevent any potential circuit damage.
• What are the typical application scenarios where the Vicor V24A48T300B DC DC converter excels? The Vicor V24A48T300B is well-suited for industrial and telecommunications equipment where a stable and isolated power supply is required. Its robust features, such as Over Voltage Protection (OVP) and Under Voltage Lockout (UVLO), make it ideal for systems needing reliable operation under varying input conditions. Consider using this converter in critical ITE applications requiring both high efficiency and rugged performance.
• Are there alternative parts to the Vicor V24A48T300B that might be more suitable for a lower power requirement? If your application requires lower output power, you may consider Vicor's V24A48T150B, which provides similar specifications in terms of input and output voltage but with a reduced power capacity of 150W. This alternative may be advantageous when power efficiency and thermal management are critical, allowing for a more compact solution without sacrificing necessary features such as isolation and protection.
• How does the packaging type of the Vicor V24A48T300B affect its installation on a PCB? The Vicor V24A48T300B comes in a Full Brick package that measures 4.60' L x 2.20' W x 0.54' H. This form factor is designed for through-hole mounting, which can influence PCB layout and available space. Ensure that your PCB design accommodates the footprint and is optimized for thermal dissipation by positioning the converter away from heat-sensitive components while also providing sufficient clearance for the connectors.
• What are the design limitations I should consider when integrating the Vicor V24A48T300B into a new project? One limitation of the Vicor V24A48T300B is its maximum input voltage of 36V, which requires careful consideration of potential overvoltage scenarios in your application. Additionally, while the module operates efficiently within its thermal limits, exceeding ambient temperatures could lead to thermal throttling. Always account for possible input voltage fluctuations and ambient temperature variations in your design parameters for optimal performance.
• What certification standards does the Vicor V24A48T300B meet, and how does that impact its reliability in critical applications? The Vicor V24A48T300B is RoHS3 compliant, which indicates it meets stringent environmental and safety regulations. This compliance is crucial in applications requiring adherence to environmental standards and can enhance reliability perception in sensitive markets. However, for critical applications, it is advisable to conduct thorough reliability testing under expected load conditions to ensure it meets your specific reliability criteria.
• How can I assess the lifecycle and supply status of the Vicor V24A48T300B for my long-term project? To gauge the lifecycle and supply status of the Vicor V24A48T300B, consult with your distributor or Vicor's sales support for the latest information on production and availability. Understanding whether the product is in active production, as well as checking for any obsolescence notices, can help you avoid supply chain disruptions. As part of your risk management, consider alternative parts that could serve as replacements to mitigate potential sourcing concerns.
• What specific factors should I keep in mind for the UVLO and OVP features on the Vicor V24A48T300B? When utilizing the UVLO and OVP features of the Vicor V24A48T300B, accurately defining the input voltage thresholds is essential for avoiding unintended shutdowns or damage. Ensure your circuits provide adequate filtering to prevent transient overvoltage conditions from triggering these protection features, and consider their impact on the overall system stability during operation. Adjust your designs accordingly to incorporate these protective elements seamlessly.
• How does the efficiency of the Vicor V24A48T300B influence my system's overall power management strategy? With an efficiency of 87.10%, the Vicor V24A48T300B contributes significantly to your system's power management by minimizing wasted energy as heat. This makes it an important consideration for applications where power density and thermal performance are pivotal. Use this efficiency data to optimize your overall power budget and reduce the required cooling solutions, thus enhancing your system's reliability and longevity.
