DRV8837DSGR

FAQFrequently Asked Questions

• For the DRV8837DSGR motor driver, when using it to drive a brushed DC motor with a supply voltage of 6V, what are the potential risks if the load voltage suddenly spikes to 12V, exceeding its rated 0V - 11V? The DRV8837DSGR has a rated load voltage range of 0V - 11V. If the load voltage spikes to 12V, it may cause over - voltage stress on the NMOS technology - based output stages. This can lead to premature device failure, such as breakdown of the NMOS transistors, which can disrupt the motor control and potentially damage the entire motor driver circuit. To mitigate this risk, over - voltage protection circuits like transient voltage suppressors (TVS) can be added to the load side of the DRV8837DSGR.
• In a general - purpose application, how does the operating temperature range of - 40°C to 85°C of the DRV8837DSGR affect its long - term reliability when driving a DC motor continuously? In the lower end of the operating temperature range (- 40°C), the electrical characteristics of the DRV8837DSGR may change. For example, the on - resistance of the NMOS transistors may increase, leading to more power dissipation and reduced efficiency. At the higher end (85°C), the device may experience thermal runaway if proper heat dissipation is not provided. Continuous operation near the temperature limits can accelerate device aging, reducing its long - term reliability. Adequate thermal management, such as using heat sinks or fans, is crucial to keep the DRV8837DSGR within a more optimal temperature range.
• When designing a PCB for the DRV8837DSGR in a solenoid application, what are the key layout considerations to minimize electromagnetic interference (EMI) and ensure stable operation? For the DRV8837DSGR in a solenoid application, keep the power traces as short as possible to reduce inductance and EMI. Place decoupling capacitors close to the power pins of the DRV8837DSGR to filter out high - frequency noise. Separate the analog and digital ground traces and connect them at a single point to avoid ground loops. Also, use a ground plane under the device to provide a low - impedance return path and shield against EMI. This layout approach helps maintain the stable operation of the DRV8837DSGR and the solenoid.
• Can the DRV8837DSGR be used in parallel to drive a DC motor that requires a current higher than its rated 1.8A output? If so, what challenges need to be addressed? It is possible to use the DRV8837DSGR in parallel to drive a DC motor with a higher current requirement. However, challenges need to be addressed. Current sharing between the parallel - connected DRV8837DSGR devices may be uneven, which can cause some devices to overheat and fail. To ensure proper current sharing, external resistors can be added in series with each device's output. Additionally, the thermal management system needs to be enhanced to handle the increased power dissipation from the multiple devices.
• In a system where the power supply has some ripple, how does the DRV8837DSGR respond to a supply voltage within its 1.8V - 7V range but with a significant ripple component? The DRV8837DSGR may experience performance degradation due to the supply voltage ripple. The ripple can cause fluctuations in the output current, leading to unstable motor operation or inaccurate control of the solenoid. To reduce the impact of the ripple, a low - pass filter can be added to the power supply input of the DRV8837DSGR. This filter can smooth the supply voltage, ensuring more stable operation of the device within the specified 1.8V - 7V supply voltage range.
• Are there any alternative parts that can be used as a drop - in replacement for the DRV8837DSGR in a brushed DC motor control application, and what factors should be considered when choosing an alternative? Some alternative parts may exist from other manufacturers, but when choosing a drop - in replacement for the DRV8837DSGR, several factors need to be considered. Electrical parameters such as supply voltage range, output current, and load voltage should match closely. The package type also needs to be the same to ensure compatibility with the existing PCB design. Additionally, the interface type (PWM in the case of DRV8837DSGR) and the motor type (brushed DC) should be supported by the alternative part.

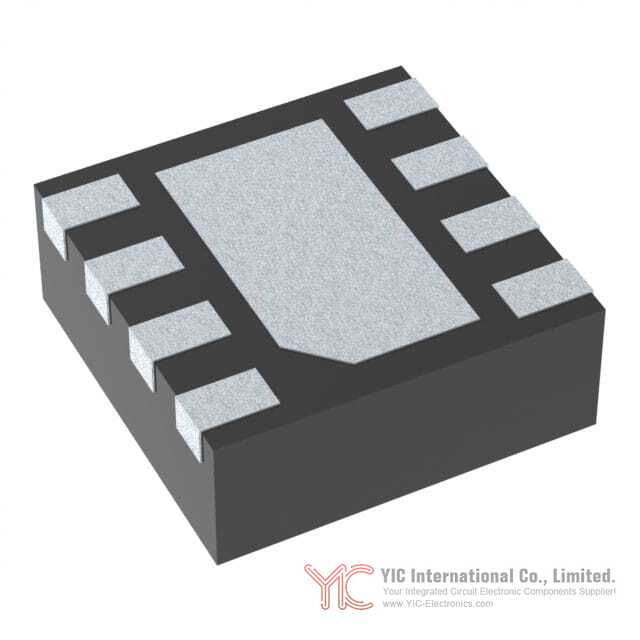

• Given the 8 - WSON (2x2) package of the DRV8837DSGR, how does the exposed pad impact the PCB design and thermal management? The exposed pad in the 8 - WSON (2x2) package of the DRV8837DSGR serves as an important thermal path. In PCB design, a large copper pour should be connected to the exposed pad on the PCB. This copper pour helps to transfer heat from the device to the PCB, acting as a heat sink. However, proper vias need to be placed under the exposed pad to improve the thermal conductivity. The vias allow heat to spread to other layers of the PCB, enhancing the overall thermal management of the DRV8837DSGR.
