MMA7361LCT

FAQFrequently Asked Questions

• How does the MMA7361LCT handle trade-offs between sensitivity and dynamic range when switching between ±1.5g and ±6g modes in real-time applications? The MMA7361LCT allows users to select between ±1.5g and ±6g full-scale ranges via an external logic pin, but this selection is static during operation—it cannot be changed dynamically without a power cycle or reconfiguration. In ±1.5g mode, sensitivity is higher at 800 mV/g, enabling detection of subtle motion, while in ±6g mode, sensitivity drops to 206 mV/g to accommodate higher acceleration events. Engineers must pre-determine the expected acceleration profile during system design; selecting the wrong range risks signal saturation or insufficient resolution, especially in vibration-sensitive or impact-detection applications.
• What are the critical layout and grounding considerations for minimizing noise when using the MMA7361LCT’s analog output signals on a mixed-signal PCB? The MMA7361LCT’s analog outputs (X, Y, Z) are highly susceptible to noise due to their low-voltage signal levels (mV/g range). A solid ground plane beneath the device, short and direct routing of output traces to the ADC, and separation from high-speed digital lines are essential. Additionally, placing a 0.1 µF ceramic decoupling capacitor as close as possible to the VDD pin minimizes power supply ripple. Avoid routing clock or switching regulator traces near the sensor; even minor coupling can manifest as false acceleration readings, particularly at the 400 Hz bandwidth limit.
• Can the MMA7361LCT be used reliably in automotive environments despite not being AEC-Q100 qualified? While the MMA7361LCT operates over –40°C to +85°C and is RoHS3 compliant, it lacks AEC-Q100 certification, which is typically required for automotive-grade components. Its use in under-hood or safety-critical automotive systems (e.g., airbag deployment) is not recommended. However, it may be suitable for non-critical cabin applications like infotainment tilt control or diagnostics, provided the system design includes environmental hardening and redundancy. Always verify long-term reliability under actual operating conditions if deployed near the temperature extremes.
• How does the sleep mode in the MMA7361LCT impact power consumption and wake-up response time in battery-powered IoT devices? In sleep mode, the MMA7361LCT reduces current draw significantly—typically below 1 µA—making it viable for ultra-low-power applications like remote sensors or wearables. However, exiting sleep mode requires re-stabilization of the internal circuitry, introducing a wake-up delay of approximately 10–20 ms before valid output data is available. This latency must be accounted for in duty-cycled systems; frequent sleep/wake transitions may offset power savings if the active period is short relative to the stabilization time.
• What ADC resolution and sampling rate are required to fully utilize the MMA7361LCT’s output accuracy across its selectable g-ranges? To avoid quantization error dominating the signal, a 12-bit ADC is the minimum recommendation when using the MMA7361LCT. In ±1.5g mode, with 800 mV/g sensitivity and a 3.3V supply, the full-scale output spans ~2.4V, requiring ~2.4mV per LSB—achievable with 12-bit resolution. For ±6g mode (206 mV/g), the same ADC provides adequate but reduced margin. Sampling should exceed 800 Hz (twice the 400 Hz X/Y bandwidth) to satisfy Nyquist criteria, especially in motion-triggered applications where aliasing could mask critical events.
• Are there known compatibility issues when replacing the MMA7361LCT with newer digital-output accelerometers like the ADXL345 or MPU-6050 in existing analog designs? Direct replacement is not feasible due to fundamental interface differences: the MMA7361LCT provides analog voltage outputs, while digital alternatives use I²C/SPI. Retrofitting requires adding a microcontroller or ADC, increasing BOM cost and complexity. Moreover, the MMA7361LCT’s selectable analog scaling offers hardware-level flexibility absent in fixed-range digital sensors. If migrating, redesign the signal chain entirely—don’t attempt to interface digital outputs to legacy analog conditioning circuits, as this introduces unnecessary conversion stages and potential signal degradation.
• How does mechanical mounting orientation affect calibration and zero-g offset in the MMA7361LCT, especially in non-horizontal installations? The MMA7361LCT is sensitive to gravitational offset based on mounting angle. In a horizontal position, the Z-axis typically outputs ~1.65V (mid-supply at 0g), but tilting introduces a DC offset proportional to sin(θ). For precise measurements, perform a 6-point calibration (all axes ±1g) during production or use software compensation. Surface-mount attachment must be rigid; flexure in the PCB or uneven solder joints can cause drift over time or temperature, particularly near the 85°C upper limit where package stress increases.

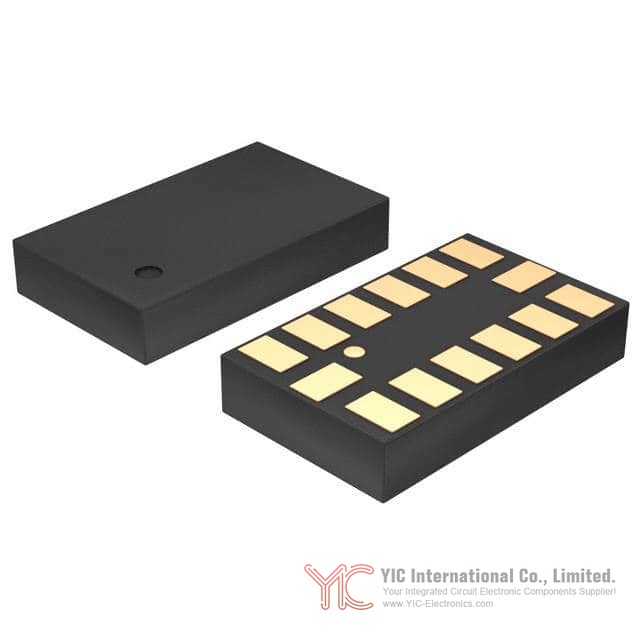

• What derating or thermal management strategies are necessary when operating the MMA7361LCT at elevated ambient temperatures close to 85°C? Although rated for –40°C to +85°C, performance parameters such as offset voltage and sensitivity can drift near thermal limits. At 85°C, self-heating from supply current (typically 400 µA active) combined with poor PCB thermal conductivity may cause localized temperature rise, exacerbating drift. Ensure adequate copper pour under the 14-LGA package and avoid enclosing the device in thermally insulating enclosures. For high-accuracy applications, characterize the sensor across the full temperature range and implement temperature compensation in firmware.
• Is the MMA7361LCT suitable for high-frequency vibration analysis, and what limits its usefulness above 300–400 Hz? The MMA7361LCT is not ideal for high-frequency vibration analysis. Its bandwidth is limited to 400 Hz (X/Y) and 300 Hz (Z), with inherent roll-off beyond these points due to internal mechanical and electrical filtering. Signals above these frequencies are attenuated, potentially missing critical resonant modes in machinery monitoring. Additionally, the analog output stage may exhibit phase delay and amplitude distortion near the cutoff. For vibration analysis above 500 Hz, consider MEMS accelerometers with higher bandwidth (e.g., >1 kHz) and digital output for precise spectral analysis.
• Given the MMA7361LCT’s obsolescence risk as a Freescale/NXP legacy part, what are the recommended second-source or drop-in compatible alternatives? The MMA7361LCT is a mature part with limited second-sourcing options. While no true drop-in replacements exist due to its unique 14-LGA package and analog interface, functionally similar alternatives include the Analog Devices ADXL335 (3-axis analog, ±3g, LFCSP) and STMicroelectronics LIS344ALH (±2g/±6g selectable, analog, LGA-16). However, pinout, package size, and sensitivity differ—requiring PCB redesign. For long-term supply security, consider migrating to digitally interfaced successors like the NXP MMA8451Q, though this entails architectural changes. Always validate mechanical, electrical, and software compatibility before substitution.
