• What are the critical design considerations when integrating the SN74CB3Q3245ZQNR bus switch into a high-speed digital system with mixed-voltage domains? The SN74CB3Q3245ZQNR supports a single supply voltage range of 2.3V to 3.6V, making it suitable for 2.5V and 3.3V systems, but it does not provide level shifting. Designers must ensure that all connected I/O signals remain within the device’s VCC range to avoid signal integrity issues or latch-up. Its low propagation delay (<3.5 ns typical) and minimal capacitance (typically 5 pF channel-to-channel) make it ideal for high-speed buses like SPI, I²C, or memory interfaces, but trace impedance control and termination strategies should be applied to mitigate reflections in point-to-point or short multidrop topologies.

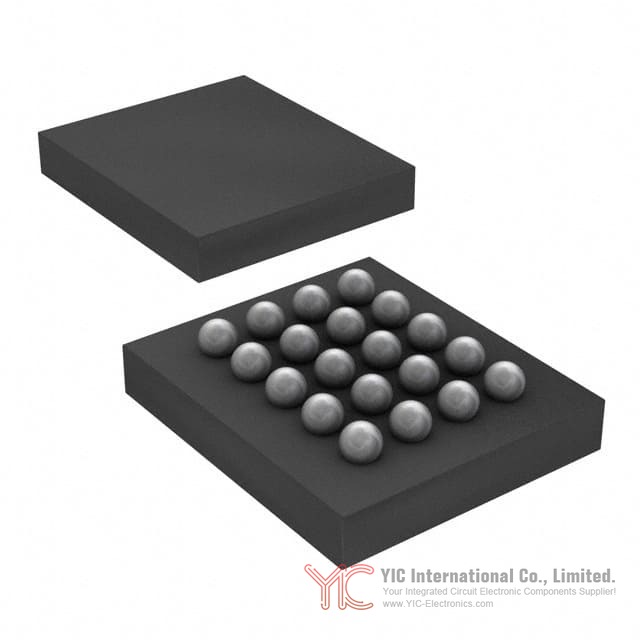

• How does the 20-BGA MicroStar Junior package of the SN74CB3Q3245ZQNR impact PCB layout and thermal performance in compact designs? The 20-BGA MicroStar Junior (4x3 mm) package is optimized for space-constrained applications, but its small ball pitch (0.5 mm) demands precise PCB fabrication and assembly processes. A 4-layer or higher stack-up with controlled impedance routing is recommended. Thermal dissipation is passive and relies on the PCB copper pour; while the device has low power consumption (ICC typically <10 µA in static mode), adequate ground plane connectivity under the package is essential to manage localized heating during high-frequency switching.
• Can the SN74CB3Q3245ZQNR be used bidirectionally for both signal multiplexing and demultiplexing in a shared-bus architecture? Yes, the SN74CB3Q3245ZQNR is a true bidirectional 8-channel 1:1 bus switch, allowing seamless signal flow in either direction when enabled. Each channel operates independently under the control of a common OE (Output Enable) pin, making it suitable for multiplexing one signal source to one of eight destinations or consolidating multiple inputs onto a shared line—provided only one path is active at a time to prevent contention.
• What are the risks of using the SN74CB3Q3245ZQNR in systems where input signals may exceed the supply voltage during power-up or hot-plug events? The SN74CB3Q3245ZQNR lacks overvoltage-tolerant inputs. If an input signal exceeds VCC + 0.5V (even momentarily during hot-plug or power sequencing), excessive current may flow through the ESD protection diodes, potentially damaging the device. To mitigate this, use series current-limiting resistors (e.g., 100Ω–1kΩ) or implement external clamping diodes tied to VCC, especially in hot-swappable or multi-voltage backplane applications.
• How does the enable (OE) pin behavior affect system power management and signal isolation in low-power designs? When OE is driven low, all channels of the SN74CB3Q3245ZQNR enter a high-impedance (Hi-Z) state, effectively isolating the connected buses and reducing leakage current to typically <1 µA per channel. This feature enables dynamic power domain isolation in battery-powered systems—such as turning off peripheral interfaces during sleep modes—without requiring additional discrete switches or level translators.
• Are there pin-compatible or functionally equivalent alternatives to the SN74CB3Q3245ZQNR that offer enhanced features like integrated pull-ups or wider voltage range? Direct pin-compatible drop-in replacements are limited due to the specialized 20-BGA MicroStar Junior footprint. However, the SN74CBT3245A (in TSSOP or TVSOP) offers similar 8-channel 1:1 switching with a broader VCC range (4.5V to 5.5V) but lower speed. For 3.3V systems requiring pull-up resistors, consider the TI TS3L500 series, though these require different pinouts and control logic. Always validate signal timing and loading characteristics before substitution.
• What reliability and qualification standards apply to the SN74CB3Q3245ZQNR, and is it suitable for automotive or industrial environments? The SN74CB3Q3245ZQNR is qualified to JESD22 and operates over the industrial temperature range of –40°C to +85°C, meeting typical industrial automation and telecom infrastructure requirements. However, it is not AEC-Q100 certified, so it is not recommended for automotive applications unless used in non-safety-critical cabin electronics with additional environmental derating and validation.
• How should ground bounce and simultaneous switching noise (SSN) be managed when using multiple channels of the SN74CB3Q3245ZQNR in parallel? Although the SN74CB3Q3245ZQNR has only eight channels, simultaneous switching of multiple lines—especially with fast edge rates—can induce ground bounce due to package inductance. To minimize SSN, place a 0.1 µF ceramic decoupling capacitor as close as possible to the VCC and GND balls, and ensure a solid, low-impedance ground plane. Avoid daisy-chained ground returns and consider staggered enable timing if full-bandwidth parallel switching is required.
• What lifecycle and supply chain considerations should engineers evaluate before designing in the SN74CB3Q3245ZQNR for long-term production? The SN74CB3Q3245ZQNR is part of Texas Instruments’ standard product portfolio with no announced end-of-life (EOL) status, indicating stable long-term availability. However, the MicroStar Junior BGA package may face assembly yield challenges in high-volume manufacturing due to fine pitch requirements. Engage with TI’s supply chain team early for lifecycle forecasts and consider qualifying a second-source logic switch in TSSOP if board real estate allows, to mitigate future sourcing risks.
