MBR0580S1-7

FAQFrequently Asked Questions

• What are the key design risks when using the MBR0580S1-7 in high-frequency switching applications above 100 kHz? The MBR0580S1-7, while rated for fast recovery (≤500 ns), exhibits a junction capacitance of 15 pF at 5 V and 1 MHz, which can lead to significant reverse recovery losses and EMI issues at frequencies above 100 kHz. Engineers should account for capacitive coupling and switching transients in the layout; improper PCB trace routing or insufficient snubber networks may result in voltage overshoot or reduced efficiency. This Schottky diode is better suited for moderate-frequency rectification (e.g., DC-DC converters under 50 kHz) unless active damping or gate drive optimization is implemented.
• Can the MBR0580S1-7 be used in parallel for higher current applications, and what derating considerations apply? Parallel operation of the MBR0580S1-7 is not recommended due to its 500 mA average rectified current limit and lack of current-sharing symmetry in the SOD-123 package. Even minor forward voltage (Vf) mismatches—such as the 800 mV @ 500 mA specification—can cause thermal runaway in one device. If higher current is required, select a higher-rated diode instead. For redundancy or load-sharing designs, individual current balancing resistors or active monitoring circuits would be necessary, increasing complexity and negating the cost advantage of this part.
• How does the reverse leakage current of the MBR0580S1-7 impact low-power or battery-operated systems? The MBR0580S1-7 has a reverse leakage current of 5 µA at 80 V, which, while typical for an 80 V Schottky, can become significant in ultra-low-power designs such as IoT sensors or energy-harvesting circuits. At elevated junction temperatures (approaching the 175°C max), leakage increases exponentially—potentially doubling every 10°C rise. In systems with long sleep cycles or high-impedance nodes, this leakage may exceed allowable quiescent current budgets, making lower-leakage alternatives preferable despite higher Vf.
• Is the MBR0580S1-7 suitable for automotive or industrial environments given its operating temperature range? Although the MBR0580S1-7 supports a junction temperature range of -55°C to 175°C, its reliability in automotive (AEC-Q101) or industrial-grade applications depends on additional qualification. The part is not explicitly AEC-Q101 certified, so use in under-hood or safety-critical systems requires thorough validation. Thermal cycling, humidity exposure, and long-term drift under bias must be evaluated independently. For non-critical industrial control or consumer electronics in controlled environments, it performs adequately with proper derating.

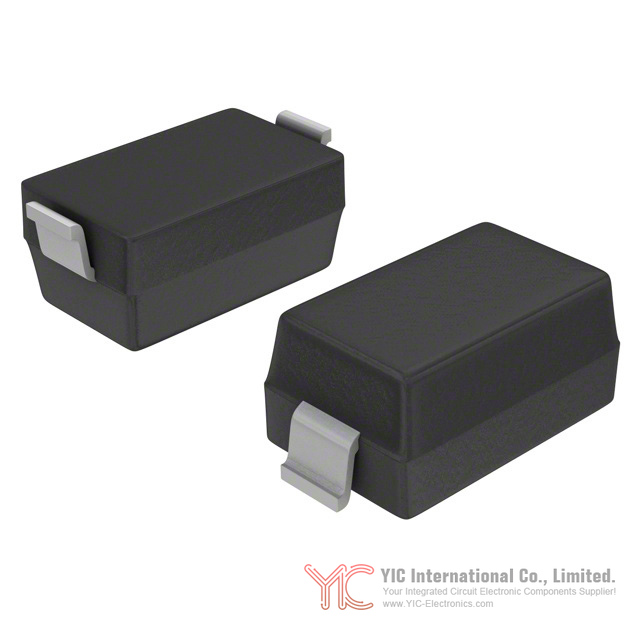

• What PCB layout practices are critical when mounting the MBR0580S1-7 in high-density designs? The SOD-123 surface-mount package of the MBR0580S1-7 demands careful thermal and electrical layout. Keep anode and cathode traces short and wide to minimize inductance and resistance, especially in switching paths. Avoid placing heat-generating components nearby, as the plastic package has limited thermal conductivity. Use thermal vias under the cathode pad if connected to a ground plane to improve heat dissipation. In high-current pulsed applications, ensure solder joints are robust to prevent cracking due to thermal expansion mismatch.
• Are there pin-to-pin or functionally compatible alternatives to the MBR0580S1-7 that offer improved thermal performance? Direct pin-compatible alternatives in SOD-123 are limited, but functionally similar parts include the BAT54 series (lower Vf but reduced voltage rating) and the NSR0540HT1G (40 V, higher current). For better thermal handling, consider moving to a larger package like SMA or SMB with diodes such as the MBR0540T3G (40 V, 500 mA in SMA). The MBR0580S1-7’s 80 V rating is relatively high for its size, so trade-offs between voltage margin, thermal resistance, and board space must be evaluated based on system requirements.
• How does the forward voltage drop of the MBR0580S1-7 affect efficiency in low-voltage, high-current output stages? With a forward voltage of 800 mV at 500 mA, the MBR0580S1-7 introduces approximately 0.4 W of conduction loss under full load. In low-output-voltage applications (e.g., 3.3 V or 5 V rails), this represents a significant efficiency penalty—up to 12% loss at 5 V output. For high-efficiency designs, consider synchronous rectification or diodes with lower Vf, though the 80 V rating of the MBR0580S1-7 may be necessary for input-side protection or high-voltage pre-regulation stages where efficiency trade-offs are acceptable.
• What derating guidelines should be applied to the MBR0580S1-7 under continuous operation near maximum ratings? To ensure long-term reliability, derate the MBR0580S1-7’s current and voltage by at least 20–30% under continuous operation. For example, limit average current to 350–400 mA and reverse voltage to 60 V or less in sustained conditions. Junction temperature should not exceed 125°C in most applications to avoid accelerated aging. Power dissipation (P = Vf × If) must be managed with adequate copper area on the PCB, as the SOD-123 package has limited thermal dissipation capability without thermal vias or heatsinking.
• Can the MBR0580S1-7 be used in reverse polarity protection circuits, and what are the limitations? Yes, the MBR0580S1-7 can serve in reverse polarity protection for 80 V systems, but its 800 mV forward drop results in higher power loss compared to MOSFET-based solutions. In battery-powered or high-current applications, this drop reduces available system voltage and increases thermal load. Additionally, the 5 µA reverse leakage at 80 V may allow small unintended currents in protected circuits. For low-power or precision analog systems, this leakage could affect measurement accuracy, necessitating alternative protection topologies.
• Is the MBR0580S1-7 available in tape and reel for automated assembly, and what packaging consistency should be expected? The MBR0580S1-7 is supplied in tape and reel (TR) format, compatible with standard SMT pick-and-place equipment. The SOD-123 package dimensions are tightly controlled, but engineers should verify reel quantity (typically 3,000 or 10,000 units) and carrier tape dimensions against their assembly line specifications. Moisture sensitivity level (MSL) is typically MSL 1 (unlimited floor life), but confirm with the manufacturer’s packaging datasheet to avoid reflow-related defects during high-volume production.
