DMP1096UCB4-7

FAQFrequently Asked Questions

• What are the key design considerations when using the DMP1096UCB4-7 in low-voltage battery-powered systems where gate drive voltage may vary between 1.5V and 4.5V? The DMP1096UCB4-7 is optimized for low-voltage operation with a specified Rds(on) of 102mΩ at Vgs = 4.5V and Id = 500mA, but performance degrades significantly at 1.5V gate drive. Engineers must account for higher conduction losses and reduced current handling at lower Vgs, especially in 1.8V or 3.3V logic systems. Ensure that the gate driver can deliver sufficient voltage to maintain acceptable Rds(on) under load, or consider level-shifting circuitry if operating near the 1.5V threshold. Thermal derating becomes critical in compact designs due to the 820mW power dissipation limit at ambient temperature.

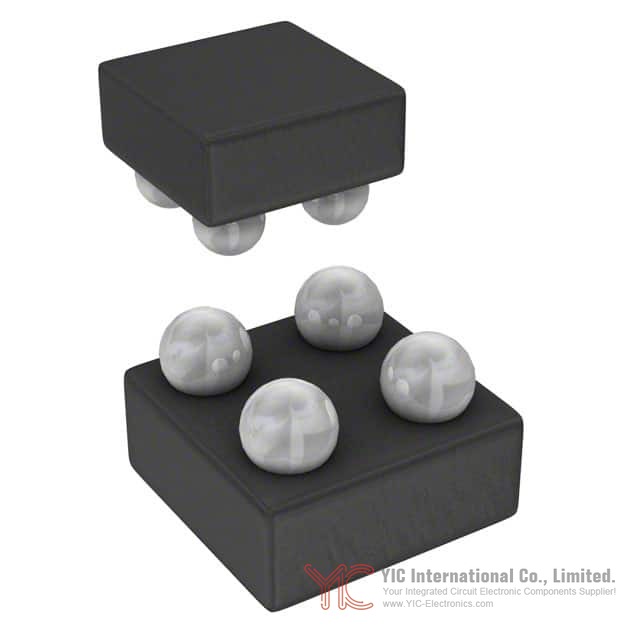

• How does the ultra-compact U-WLB1010-4 package of the DMP1096UCB4-7 impact PCB layout and thermal management in high-density power applications? The DMP1096UCB4-7’s U-WLB1010-4 (1.0mm x 1.0mm) wafer-level ball grid array package enables minimal footprint integration but demands precise PCB design. Thermal performance relies heavily on proper solder joint formation and copper pour under the device; insufficient thermal vias or pad area can lead to localized hotspots despite the 150°C TJ rating. Use at least four thermal vias connected to an internal ground or power plane to dissipate heat effectively. Avoid placing sensitive analog traces near the MOSFET due to proximity-induced noise coupling in such a small form factor.
• Can the DMP1096UCB4-7 be safely paralleled to increase current capacity in a multi-phase load switch or motor driver application? Paralleling the DMP1096UCB4-7 is not recommended without careful design validation. While its low gate charge (3.7nC max at 4.5V) supports fast switching, threshold voltage variation (Vgs(th) max of 1V @ 250µA) and on-resistance tolerance can cause unequal current sharing, especially under dynamic loads. Any mismatch may result in thermal runaway in one device. If parallel operation is necessary, include individual gate resistors and ensure symmetrical layout with matched trace lengths and thermal coupling.
• What system-level risks should be evaluated when replacing a standard SOT-23 P-channel MOSFET with the DMP1096UCB4-7 in an existing design? Migrating to the DMP1096UCB4-7 from a larger package like SOT-23 introduces several risks: reduced creepage and clearance due to the WLBGA footprint may violate safety standards in high-reliability applications; the lower parasitic inductance benefits switching speed but increases susceptibility to voltage spikes during turn-off without adequate snubbing; and the absence of exposed thermal pad requires reliance on PCB copper for heat extraction. Verify that your assembly process supports fine-pitch BGA soldering and that input capacitance (251pF @ 6V) does not overload the driving stage.
• Is the DMP1096UCB4-7 suitable for reverse polarity protection in 12V automotive or industrial systems, and what design safeguards are necessary? The DMP1096UCB4-7 can be used for reverse polarity protection in 12V systems due to its 12V Vdss rating and P-channel configuration, which allows series insertion in the positive rail. However, during reverse connection, the body diode will conduct until the gate is driven, potentially exposing downstream circuitry. Implement a fast-acting gate control circuit that disables the MOSFET within microseconds of fault detection. Also, ensure the 2.6A continuous drain current meets worst-case inrush and steady-state demands, and include overcurrent protection since the device lacks built-in current limiting.
• How does the gate charge characteristic of the DMP1096UCB4-7 influence driver selection and switching efficiency in PWM-based applications like LED dimming or DC-DC converters? With a maximum gate charge of only 3.7nC at 4.5V, the DMP1096UCB4-7 enables efficient switching even with weak drivers, reducing gate drive losses in battery-operated PWM systems. However, its low input capacitance (251pF) means very fast rise/fall times are achievable, which can exacerbate EMI if not controlled. Use a gate resistor (10–100Ω) to dampen oscillations and limit di/dt. Select a driver capable of sourcing/sinking sufficient peak current to charge/discharge the gate rapidly while maintaining signal integrity in noisy environments.
• Are there known compatibility or substitution challenges when replacing the DMP1096UCB4-7 with similar low-voltage P-MOSFETs from other manufacturers? Direct substitution of the DMP1096UCB4-7 requires scrutiny of both electrical and mechanical parameters. Many alternatives in WLCSP or DFN packages may have different pinouts, thermal resistance, or gate threshold behavior. For example, some competing parts exhibit higher Rds(on) at 2.5V Vgs, making them unsuitable for 3.3V logic drive without performance degradation. Always compare full datasheet curves—not just headline specs—and validate footprint compatibility, especially since the U-WLB1010-4 uses a non-standard 4-ball arrangement that may not align with generic "1x1mm" replacements.
• What reliability and qualification concerns arise from using the DMP1096UCB4-7 in extended-temperature environments approaching its 150°C TJ limit? Operating the DMP1096UCB4-7 near its 150°C junction temperature accelerates electromigration and reduces long-term reliability, particularly in the fine-pitch WLBGA interconnects. While it is rated for -55°C to 150°C, sustained high-temperature operation increases Rds(on) and leakage current, potentially creating a positive feedback loop. Derate power dissipation aggressively above 85°C ambient and ensure adequate airflow or thermal mass. Additionally, confirm that your application’s mission profile aligns with Diodes Incorporated’s reliability test data, as moisture sensitivity (MSL rating) and reflow robustness are critical for WLBGA packages in harsh environments.
• How should ESD protection be handled when designing with the DMP1096UCB4-7, given its sensitivity and compact package? The DMP1096UCB4-7, like most MOSFETs, is susceptible to ESD damage during handling and operation. Its small U-WLB1010-4 package offers minimal inherent ESD robustness. Include TVS diodes or transient voltage suppressors on the gate and drain nodes, especially in exposed interfaces like USB power paths or sensor lines. Follow IPC/JEDEC J-STD-033 guidelines for moisture-sensitive component handling, and implement proper grounding during PCB assembly to prevent latent failures caused by electrostatic discharge during manufacturing or field deployment.
• What lifecycle and sourcing risks should procurement and design teams consider for the DMP1096UCB4-7 in long-term production programs? The DMP1096UCB4-7 is currently in active production by Diodes Incorporated and complies with RoHS3, but its status as a specialized WLBGA-packaged discrete warrants monitoring. Ultra-compact MOSFETs in wafer-level packages are more susceptible to supply chain discontinuities due to lower market volume compared to standard packages. Verify availability through authorized distributors and assess second-source options early. Additionally, confirm that the base product number (DMP1096) has a stable roadmap, as minor revisions in process or packaging could affect long-term compatibility in safety-critical or regulated applications.
