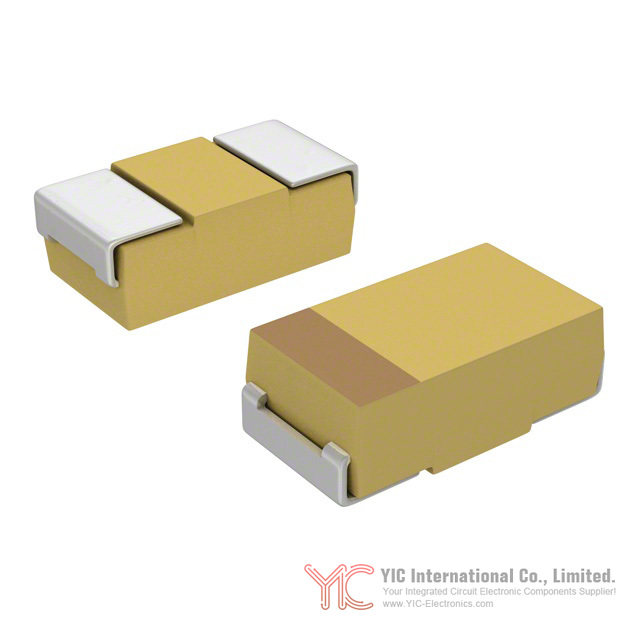

TLJK336M006R1700

FAQFrequently Asked Questions

• What are the key design risks when using the TLJK336M006R1700 tantalum capacitor in low-impedance power supply circuits, and how does its 1.7Ω ESR influence stability and transient response? The TLJK336M006R1700 has a relatively high ESR of 1.7Ω for a 33µF tantalum capacitor, which can limit its effectiveness in low-impedance, high-transient-current applications such as modern digital IC power rails. High ESR increases voltage droop during load steps and may interact unfavorably with low-ESR ceramic capacitors in parallel, potentially causing anti-resonance peaks that destabilize the power delivery network. Engineers should perform impedance profiling across the target frequency range and consider hybrid capacitor networks or alternative low-ESR polymer tantalums if transient response is critical.
• Can the TLJK336M006R1700 be safely used in automotive under-hood applications given its -55°C to 125°C operating temperature range? While the TLJK336M006R1700 meets the temperature range requirement for many automotive environments, sustained operation near 125°C significantly accelerates wear-out mechanisms in standard manganese dioxide tantalum capacitors. AVX’s TLJ series uses molded construction but lacks explicit AEC-Q200 qualification. For under-hood use, derating voltage to ≤50% of the 6.3V rating and ensuring robust thermal management are essential. Consider AEC-Q200-certified alternatives like the TPS or TRJ series for mission-critical automotive systems.
• How does the 1206 (3216 metric) molded package of the TLJK336M006R1700 affect PCB layout density and thermal performance compared to smaller or polymer-based equivalents? The 1206 footprint of the TLJK336M006R1700 offers a balance between capacitance density and manufacturability, but its molded construction limits heat dissipation compared to open-frame or polymer tantalums. The 1.00mm seated height allows use in slim designs, yet the lack of internal thermal vias or enhanced conduction paths means heat generated by ripple current must dissipate primarily through the terminals. In high-ripple scenarios, adjacent copper pours and thermal relief patterns should be optimized to prevent localized heating that could degrade reliability.
• Is the TLJK336M006R1700 suitable for hold-up or backup power applications requiring sustained energy delivery after input disconnect? The TLJK336M006R1700’s 33µF capacitance and 6.3V rating may seem adequate for short-duration hold-up, but its high ESR (1.7Ω) results in significant I²R losses during discharge, reducing usable energy and increasing thermal stress. Additionally, standard MnO₂ tantalums exhibit higher leakage current than polymer types, further diminishing effective hold-up time. For energy-critical backup functions, evaluate low-leakage or hybrid supercapacitor solutions, or confirm via empirical testing that the TLJK336M006R1700 meets hold-up duration requirements under worst-case load conditions.
• What voltage derating strategy should be applied when designing with the TLJK336M006R1700 to ensure long-term reliability in 5V systems? Although the TLJK336M006R1700 is rated for 6.3V, applying it directly in a 5V system without derating increases the risk of premature failure due to voltage spikes, temperature rise, or manufacturing variances. Best practice dictates derating to 50% of rated voltage for general-purpose applications—meaning the 6.3V part should not exceed ~3.15V continuous operation. In a 5V rail, this margin is insufficient; instead, consider a 10V-rated tantalum or assess system-level transient suppression. If used at 5V, ensure rigorous in-circuit surge testing and monitor for parametric drift over temperature.
• Are there pin-to-pin compatible alternatives to the TLJK336M006R1700 with lower ESR or higher reliability for mission-critical industrial control systems? Direct drop-in replacements with improved performance include AVX’s TPS series (polymer tantalum) in 1206 package, which offers ESR values below 0.5Ω and enhanced surge robustness. Alternatively, Kyocera AVX’s TRJ series provides higher reliability with conformal coating and better moisture resistance. While these may have slightly different capacitance tolerances or height profiles, they maintain the same footprint. Always verify reel compatibility and reflow profiles, as polymer types often require tighter thermal control during assembly.
• How does the ±20% capacitance tolerance of the TLJK336M006R1700 impact filter design accuracy in precision analog front-ends or timing circuits? The ±20% tolerance of the TLJK336M006R1700 introduces significant uncertainty in RC time constants or cutoff frequencies, making it unsuitable for precision timing, oscillator circuits, or high-accuracy analog filtering without post-assembly calibration. In such applications, tighter-tolerance ceramic capacitors (e.g., C0G/NP0) or laser-trimmed networks are preferred. If tantalum is required for volumetric efficiency, select parts with ±10% tolerance or implement feedback-based compensation to mitigate variation effects.
• What PCB assembly considerations are critical when reflow-soldering the TLJK336M006R1700 to avoid mechanical or electrical failure? The TLJK336M006R1700’s molded 1206 package is sensitive to thermal shock and mechanical stress during reflow. Excessive ramp rates or peak temperatures above 260°C can induce microcracks in the dielectric, leading to latent short-circuit failures. Follow AVX’s recommended reflow profile: max peak temperature of 260°C, time above liquidus ≤60 seconds, and controlled cooling to minimize thermal gradients. Avoid placing the component near board edges or high-stress zones, and ensure solder paste volume is controlled to prevent tombstoning given the small 3.20mm x 1.60mm footprint.
• Can the TLJK336M006R1700 be used in parallel with ceramic capacitors on the same power rail, and what precautions are necessary to avoid instability? Yes, but the high ESR of the TLJK336M006R1700 (1.7Ω) combined with ultra-low ESR ceramics can create impedance mismatches that lead to anti-resonance—peaks in impedance that degrade noise suppression. To mitigate this, insert a small series resistor (1–10Ω) with the ceramic capacitor or use a ferrite bead to isolate the branches. Alternatively, place the TLJK336M006R1700 closer to high-ripple loads where its ESR aids in damping, while ceramics handle high-frequency decoupling near the IC.
• What is the expected lifecycle and supply continuity outlook for the TLJK336M006R1700, and should designers consider second-sourcing for long-life products? The TLJK336M006R1700 belongs to AVX’s general-purpose TLJ series, which is currently in active production but not listed as a long-lifecycle or automotive-grade component. Given industry trends toward polymer and multilayer ceramic replacements, standard MnO₂ tantalums like this may face phase-out in future revisions. For products with 5+ year lifecycles, identify second sources such as KEMET’s T491 series (33µF, 6.3V, 1206) and validate cross-compatibility early. Monitor AVX’s product change notifications and consider lifecycle buy strategies if discontinuation risk is high.
