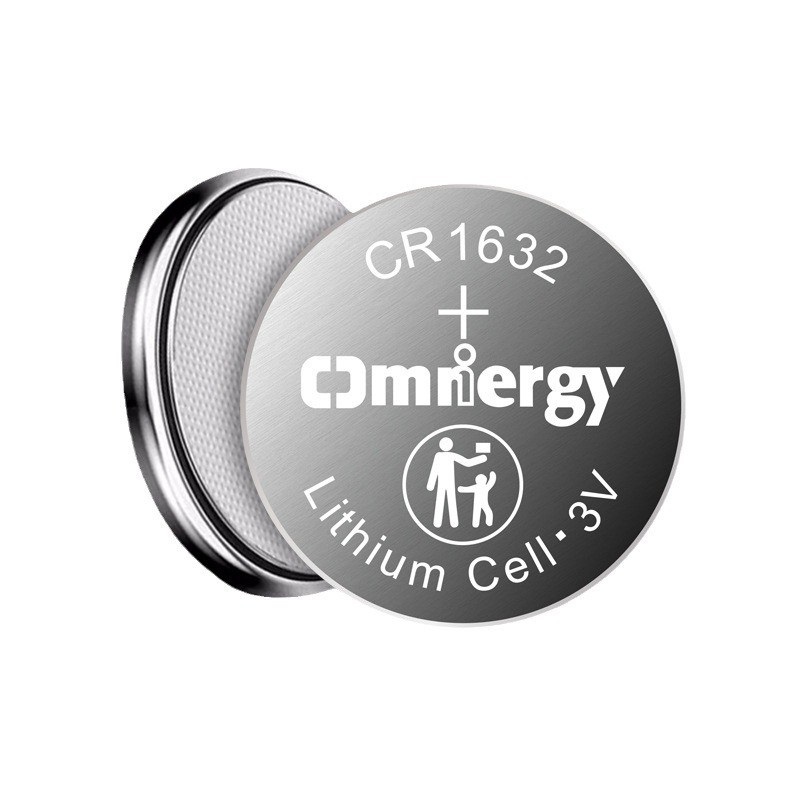

Exploring CR1632 Equivalent, Features, and Applications

CR1632 is a 3‑volt lithium coin cell used in compact electronics where small size, stable voltage, and long shelf life matter. This article explains when true drop‑in equivalents apply and when “similar” cells differ in chemistry, capacity, voltage, or size. It reviews rechargeable and high‑temperature variants, notes the risks of size mismatches, and outlines practical selection factors like duty cycle, temperature range, and fit. It also maps where CR1632 is used, compares it with the larger CR2032, and closes with safety, availability, and brand considerations drawn from real‑world use.

Catalog

Alternatives and Considerations for CR1632 Batteries

Replacing CR1632 batteries with options like ML1632, LiR1632, BR1632, DL1632, ECR1632, KCR1632, KECR1632, KL1632, and L1632 might initially seem straightforward due to their numeric similarities. However, deeper examination uncovers variations in voltage, capacity, lifespan, and chemistry that influence how devices perform. The ML1632, for instance, boasts a rechargeable chemistry, granting it prolonged usability in certain scenarios, while BR1632 excels in temperature resilience, catering to specific needs efficiently.

Model Number	Chemistry	Voltage	Diameter	Height	Typical Capacity	Notes
DL1632	Lithium Manganese Dioxide	3 V	16 mm	3.2 mm	120–140 mAh	Duracell equivalent of CR1632
ECR1632	Lithium Manganese Dioxide	3 V	16 mm	3.2 mm	120–140 mAh	Energizer branding
KCR1632	Lithium Manganese Dioxide	3 V	16 mm	3.2 mm	120–140 mAh	Kodak equivalent
BR1632	Lithium Carbon Monofluoride (Li-CFx)	3 V	16 mm	3.2 mm	120 mAh	Longer shelf life, lower drain performance
LM1632	Lithium Manganese Dioxide	3 V	16 mm	3.2 mm	120–140 mAh	Generic alternative code
CR1632H	Lithium Manganese Dioxide	3 V	16 mm	3.2 mm	130 mAh	High-drain optimized version

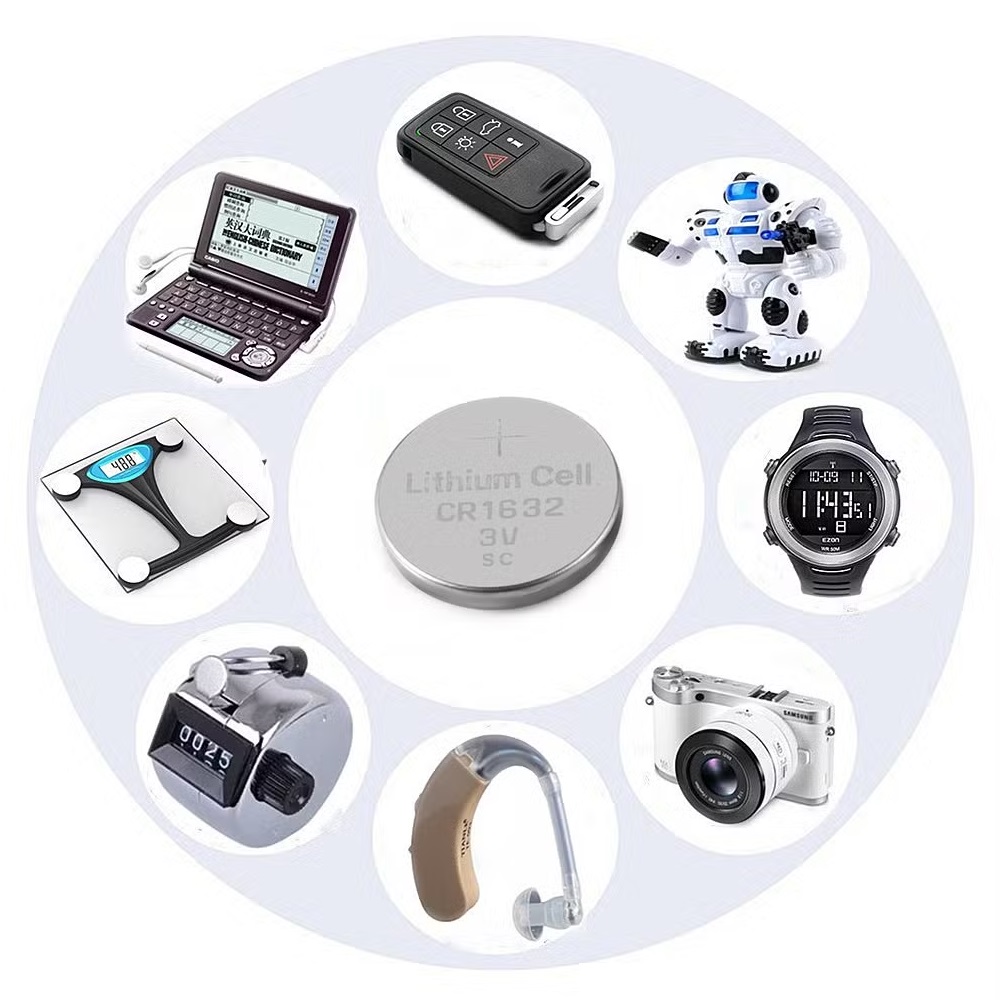

Exploring Uses of CR1632 Batteries

The CR1632 battery, with its streamlined form and notable energy density, becomes an important element for operating countless electronic devices. These batteries are renowned for consistent functionality and longevity, qualities that cater to devices requiring continuous performance. Their long shelf life and efficient energy consumption suit compact and advanced gadgets perfectly.

Everyday Electronics

• Key Fobs and Car Alarms

CR1632 batteries drive key fobs and car alarms, ideal components of contemporary vehicle security systems. These devices benefit from the perfect fusion of size and energy that CR1632 provides. Its diminutive size fits easily into tight spaces, while its potent energy output ensures reliable operation.

• Watches and Wearable Tech

For watches and wearable tech, accuracy is essential. CR1632 batteries facilitate precise timekeeping and innovative health tracking by delivering sustained energy without frequent replacements. The extended battery life enhances the overall experience and reliability of data tracking.

• Calculators, Thermometers, and Digital Clocks

The CR1632, with its compact size and high power capacity, is an ideal battery for portable devices such as calculators, thermometers, and digital clocks. Its quality plays a key role in maintaining efficient performance and ensuring accurate operation in these devices.

CR1632 in the Sphere of Medical Devices

Medical devices, such as glucose meters and blood pressure monitors, heavily depend on the precision and dependability offered by CR1632 batteries. Accurate measurement is ideal for managing health, requiring a reliable power source. The consistent power provided by these batteries is instrumental during repeated readings and data capture, where interruptions could affect health assessments.

Influence on Toys, Games, and Safety Sensors

In entertainment and safety fields, the CR1632 battery is required. From complex toys to vigilant security sensors, these batteries supply the required energy to elevate performance, boosting both enjoyment and security assurance. Observations from device interactions show the battery's significant role in maintaining operational consistency.

Effects on Advanced Equipment

High-tech devices like cameras and GPS units rely on CR1632 batteries for exceptional energy control during photography or navigation. These devices demand quick responsiveness and steadfast reliability. Personal reflections often acknowledge the importance of a stable power source in safeguarding the longevity and functionality of technology investments.

CR1632 batteries serve vital roles in protecting data during main power failures, especially in small modules and memory cards. This ability shows an important aspect of technological resilience, where data integrity must be preserved amid power outages. Embedded in high-stakes environments, such batteries provide an unseen layer of protection, supporting information continuity across various fields.

Core Traits of CR1632 Batteries

CR1632 batteries are celebrated for their versatile and trustworthy nature. With a diameter of 16mm and a height of 3.2mm, their compact size is perfect for devices needing efficient space and weight utilization. These batteries boast a remarkable energy density, enabling them to store a substantial energy amount. This feature prolongs device life, curbing frequent replacements, making it beneficial for gadgets often on standby and conserving power even during extended dormancy.

Consistent Performance

One notable feature is their steady voltage output, which ensures electronic circuits function without interruption. With any electrical disturbance potentially impacting device performance, the capability to sustain a constant voltage under differing conditions widens their application spectrum.

These batteries function efficiently between temperatures of -20°C to +60°C. Their ability to withstand temperature fluctuations opens them up for use in varied settings, from chilly outdoor environments to warmer indoor spaces. This performance in different conditions often suggests a deeper insight into their well-served environments.

Safety and Dependability

Designed with materials that minimize leakage risk, CR1632 batteries contribute to preventing device damage, ensuring the safety and extending device lifespan. Their construction results from careful material science work, aimed at reducing associated hazards with battery usage.

CR1632 batteries are adaptable beyond consumer electronics, finding roles in the automotive field, backed by their reliable performance and compact design. Their common availability, both in retail venues and through online platforms, shows their significant position in contemporary technology.

CR1632 Manufacturers

Murata – Known for producing high-quality lithium coin cells.

Panasonic – Offers reliable and widely used CR1632 batteries.

Sony – Recognized for consistent performance and durability.

Renata – A Swiss-based manufacturer and one of the largest coin cell producers.

Toshiba - Provides CR1632 batteries with around 140 mAh capacity.

Energizer / Eveready – A leading global brand with a strong presence in lithium coin cells.

Maxell – Popular for long-lasting and stable battery performance.

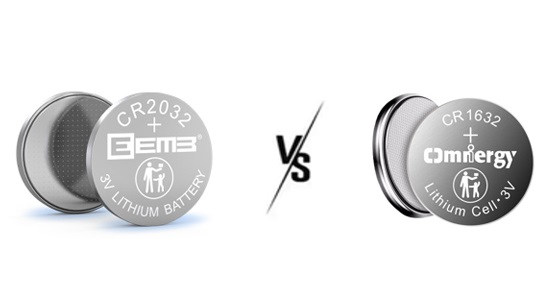

Comparative Insights on CR1632 and CR2032 Batteries

Coin cell batteries hold a special place in numerous electronic devices due to their compact design and stable voltage supply. Within this field, CR1632 and CR2032 models often spark interest and conversation. This exploration unravels their distinct features, delving into pragmatic usage contexts while offering thoughtful guidance for choosing the fitting battery.

CR1632 and CR2032 batteries present a noticeable contrast in dimensions. CR1632, with its 16mm diameter, adeptly fits devices where spatial constraints matter. In contrast, the CR2032, boasting a 20mm diameter, allows for heightened energy storage, enriching device performance, especially in applications requiring extended operation.

Capacity differences reveal that CR1632 ranges between 125-140mAh, whereas CR2032 spans 200-240mAh. Devices with prolonged operation or those demanding substantial energy intake often lean towards CR2032. This distinction becomes apparent when pondering specific energy needs, affected by both device features and usage habits.

CR1632’s compact design finds seamless integration in gadgets like key fobs, remote controls, and watches, catering to devices with less energy demand, and showing lightness and portable structure. CR2032’s robust capacity satisfies the significant energy needs of toys and medical devices, where dependable performance and longevity are required.

Both CR1632 and CR2032 batteries deliver a consistent three-volt output, securing uniformity across diverse applications. Their presence in electronics and hardware outlets shows their widespread utilization and dependability, offering straightforward access as well as quality performance.

Conclusion

Swapping a CR1632 is not just about the number on the label. Match the cell’s voltage, chemistry, and 16×3.2 mm size, and confirm solid contact in the holder before relying on any substitute. Use rechargeable (ML/LiR) or high‑temp (BR) types only when the device and conditions call for them; use CR2032 only in products designed for its larger capacity and size. Prioritize reputable brands, follow safe handling and recycling, and base the final choice on the device’s load profile, environment, and tested performance.

Frequently Asked Questions [FAQ]

1. Are CR1632 Substitute Batteries Universally Usable?

When exploring alternate batteries for CR1632, it becomes imperative to examine aspects like voltage, capacity, and alignment with your specific device. These factors can shape the lifespan and efficacy of the device in question.

2. How to Approach CR1632 Alternatives Responsibly?

Ensuring proper disposal when handling CR1632 substitutes is vital, not only to reduce environmental impact but also to safeguard personal safety. Avoiding direct contact between battery terminals and steering clear of exposure to extreme conditions help prevent mishaps.

3. Where to Find CR1632 Substitute Batteries?

Substitute batteries for CR1632 are readily available both online and offline, with many physical stores offering a range of lithium coin cells. The options can differ by region, potentially affecting how effortlessly one can procure them depending on geographical distribution channels.

4. Are Devices Always Compatible with CR1632 Alternatives?

Although many devices initially using CR1632 batteries likely support equivalent substitutes, verifying actual device needs remains a sensible step. Compatibility encompasses not just physical dimensions but also fulfilling voltage criteria set by the manufacturer.

5. What Insights Are There on the Efficiency of CR1632 Substitutes?

Typically, alternative CR1632 batteries present comparable voltage, capacity, and longevity to their original counterparts, albeit with slight variations prevalent among different producers. Opting for well-known brands can contribute to stable performance, reflecting their effort to sustain consistent quality.
