12V 7Ah Rechargeable Batteries - Features, Dimensions, and Cross Reference Chart

The 12V 7Ah battery, a versatile power source, finds its utility in diverse applications such as medical devices, electronic security systems, Uninterruptible Power Supplies (UPS), toys, scooters, and fish finders. What drives its extensive adoption? It is largely attributed to its dependable performance and versatility.

Initially, Sealed Lead Acid (SLA) technology overwhelmingly dominated the battery market. However, recently, there has been a noticeable pivot towards Lithium Iron Phosphate (LiFePO4) batteries. This transition is driven by LiFePO4's lighter weight and greater endurance in terms of charging cycles. Could this shift enhance operational efficiency and promote environmental sustainability? Evidence suggests it does.

Catalog

Nonetheless, it is essential to recognize that SLA AGM batteries remain prevalent. Why do they continue to hold strong relevance? Their durability and reliable performance are significant factors. This paper not only delves into the comparative advantages of SLA and LiFePO4 technologies but also examines their practical applications in specific devices.

Through detailed exploration, we aim to provide nuanced perspectives on how selecting the appropriate battery technology can influence the effectiveness and longevity of various applications. This detailed inquiry is intended to help guide optimal utilization strategies. The insights gleaned reveal the criticality of aligning battery technology with specific application requirements to maximize benefits.

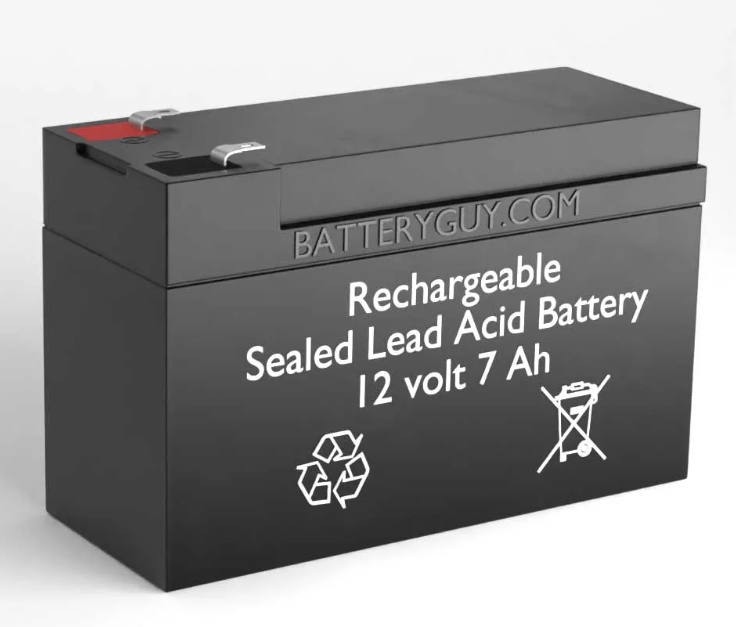

2V 7Ah Battery Dimensions and Composition

A 12V 7Ah battery typically measures approximately 151x65x94 millimeters. The terminals are mainly F1, with the option of F2 terminals available. These batteries possess a nominal voltage of 12V and a capacity of 7Ah. The majority of 12V 7Ah batteries incorporate AGM and LiFePO4 technologies, though some models use gel technology.

Lead-Acid vs. Lithium 12V 7Ah Batteries

AGM batteries tend to be heavier, often weighing 2-3 times as much as their lithium counterparts. They are adept at delivering high currents in short bursts, generally supporting 180-220 cycles at 100% Depth of Discharge (DoD) and 250-300 cycles at 80% DoD. In contrast, lithium batteries endure 2000-4000 cycles, highlighting their durability. The implementation of a Battery Management System (BMS) in lithium batteries amplifies their protection and charging efficiency while reducing weight. AGM batteries can be connected in series or parallel without restrictions, but lithium batteries need specific guidelines from their manufacturer for such configurations. For optimal performance, lithium batteries typically require dedicated chargers, while AGM batteries are compatible with standard lead-acid chargers.

Suitable Applications

AGM batteries serve well in contexts where weight is less of a concern, the demand for frequent cycling is low, and there is a need for high current. Conversely, lithium batteries are favorable in applications that prioritize low weight and high energy efficiency. Despite their higher initial cost, lithium batteries become more cost-effective in the long run due to their extended lifecycle and operational efficiency.

UPS Batteries

For Uninterruptible Power Supply (UPS) systems rated between 300-500VA, usually needing 25-50A of current, AGM batteries are advisable. The BMS in lithium batteries may not cope well with the substantial current requirements typical in UPS applications, rendering AGM batteries a more dependable choice.

Electric Vehicles and Toys

Electric vehicles and toys find significant advantages in using lithium batteries due to their lighter weight and longer run times, provided their current requirements are met by lithium technology. Nonetheless, it is vital to confirm device specifications and compatibility before transitioning to lithium batteries to guarantee smooth operation and safety.

F1 and F2 Battery Terminals

The dimensions of the F1 terminal are 4.76 millimeters in width, 6.25 millimeters in length, and 0.8 millimeters in thickness; while the F2 terminal measures 6.35 millimeters in width, 7.95 millimeters in length, and 0.9 millimeters thick. When replacing a battery, ensuring the correct terminal type or utilizing suitable adapters is essential for proper connectivity.

In pondering over the balance between cost-efficiency and performance, it becomes apparent that selecting the optimal battery type for particular applications hinges not just on immediate needs but also on long-term operational perspectives. Real-world feedback underscores how the greater upfront investment in lithium batteries might be rationalized by their prolonged lifespan and minimal maintenance demands, offering a sensible and sustainable choice for energy needs.

Battery Cross Reference Chart

The battery cross reference chart functions as an essential guide for both consumers and professionals, helping them find compatible battery alternatives across various brands and types. In a world inundated with electronic devices, one might ask: How do we efficiently navigate this chart? Grasping this skill can indeed save considerable time and resources. The chart facilitates the identification of equivalent batteries when the original is unavailable, thereby ensuring the seamless operation of devices:

Model	Cell Type Terminals	Discharge Currents	Weight	Review
AJC AJC-D7S	AGM F1	-	4.41 lbs; 2 kg	-
Ampere (LiTime) 12V 6Ah	LiFePO4 F2	1.2A cont. std., 6A cont. max., 20A 3s	2.42 lbs; 1.1 kg	-
CASIL CA1270	AGM F1	-	~4 lbs; ~1.8 kg	-
Chrome 12V 7Ah	AGM T1 (F1)	-	4.1 lbs; 1.85 kg	-
Dakota 12V 7Ah	LiFePO4 F2	10A cont. max., 50A 0.3s	2.87 lbs; 1.3 kg	-
Dakota 12V 10Ah	LiFePO4 F2	20A cont. max., 50A 0.3s	2.87 lbs; 1.3 kg	-
ECI Power 12V 10Ah	LiFePO4 F2	10A cont. max., 15A 5s	2.35 lbs; 1.06 kg	-
ECO-WORTHY 12V 10Ah	LiFePO4 F2	10A cont. max.	2.43 lbs; 1.1 kg	-
EEMB 12V 8Ah	LiFePO4	15A cont. max., 30A 3s	2.2 lbs; 1.0 kg	-
EEMB 12V 9Ah	LiFePO4	15A cont. max., 30A 2s	2.2 lbs; 1.0 kg	-
EEMB 12V 10Ah	LiFePO4	15A cont. max., 30A 3s	2.2 lbs; 1.0 kg	-
ExpertPower EP1210	LiFePO4 F2	10A cont. max., 15A 10s	2.7 lbs; 1.22 kg	-
ExpertPower EXP-1270	AGM F1	down to 10.5V: 19A 5min, 13.5A 10 min, 4.05A 1h	4.3 lbs; 1.95 kg	ExpertPower EXP-1270
ExpertPower EXP-1272	AGM F2	down to 10.5V: 19.54A 5min, 13.87A 10 min, 3.45A 1h	4.64 lbs; 2.1 kg	-
ExpertPower EXP-1280	AGM F2	down to 10.5V: 27.7A 5min, 16.5A 10 min, 4.82A 1h	5.3 lbs; 2.4 kg	-
HWE 12V 7Ah	LiFePO4 F2	7A cont. max., 30A 3s	1.87 lbs; 0.85 kg	-
Interstate FAS1075	AGM F1	7Ah @20h	4.27 lbs; 1.93 kg	-
Interstate HSL1079	AGM F2	9Ah @20h	5.95 lbs; 2.70 kg	-
LiONCore 12V 7Ah	LiFePO4 F2	1.4A cont. std., 7A cont. max., 14A surge	2.2 lbs; 1 kg	-
LOSSIGY 12V 8Ah	LiFePO4	8A cont. max.	2.3 lbs; 1.04 kg	-
MarCum 12V 10Ah	LiFePO4	-	~2.7 lbs; ~1.22 kg	-
Mighty Max ML7-12	AGM F1	down to 10.5: 24.4A 5 min, 15.7A 10 min, 4.04A 1h	4.51 lbs; 2.04 kg	-
Mighty Max ML7-12LI	LiFePO4	-	1.70 lbs; 0.77 kg	-
Mighty Max ML9-12	AGM F2	down to 10.5: 29.8A 5 min, 21.8A 10 min, 5.66A 1h	5.39 lbs; 2.45 kg	-
Mighty Max ML10-12LI	LiFePO4	-	2.45 lbs; 1.1 kg	-
NERMAK 12V10Ah	LiFePO4 F2	10A cont. max.	2.64 lbs; 1.2 kg	-
NPP NP12V-7Ah-F1	AGM F1	-	4.85 lbs; 2.2 kg	-
OCELL 12V 6Ah	LiFePO4 F2	6 A cont. max.	1.98 lbs; 0.90 kg	-
Pionergy 12V 6Ah	LiFePO4 F2	6A cont. max.	1.98 lbs; 0.9 kg	-
PowerSonic PS-1270 F1	AGM F1	-	4.80 lbs; 2.17 kg	-
PowerStar PS12-7.0	AGM F1	-	-	-
PowerStar PS12-9.0	Gel F1/F2	-	5.59 lbs; 2.53 kg	-
Power Queen 12V 6Ah	LiFePO4 F2	6A cont. max.	1.76 lbs; 0.8 kg	-
SigmasTek SP12-7	AGM	-	4.55 lbs; 2.06 kg	-
TPE 12V 7.2Ah	LiFePO4 F1	7A cont. max.	2.07 lbs; 0.94 kg	-
UltraTech UT1270	AGM F1	-	4.6 lbs; 2.08 kg	-
UPG UB1270	AGM F1	-	4.8 lbs; 2.17 kg	-
UPG UB1280	AGM F1	-	4.96 lbs; 2.25 kg	-
VICI VB7-12	AGM F1	-	4.5 lbs; 2.04 kg	-
Weize 12V 10Ah	LiFePO4 T2 (F2)	10A cont. max., 20A 3s	3.03 lbs; 1.37 kg	Weize 12V 10Ah

Recognizing different battery specifications—such as voltage, capacity, and physical dimensions—is a crucial component of using the battery cross reference chart. These parameters play a pivotal role in verifying that the substitute battery performs effectively without damaging the device. For instance, choosing a battery with a higher voltage than recommended might cause overheating and potentially catastrophic device failures. Conversely, a battery with inadequate capacity might result in insufficient operation time, underlining the need to strike a balance between compatibility and performance.

Experience across various industries underscores the significance of precision in cross-referencing batteries. For example, in the medical field, ensuring the correct battery is vital for the reliable operation of critical equipment like defibrillators and infusion pumps. One might ponder: How critical can this precision be? Well, it can literally mean the difference between life and death. Similarly, in consumer electronics, accurate cross-referencing can prevent unnecessary downtime and maintain user satisfaction.

When examining the complexities of battery cross-referencing, advancements in battery technology also warrant attention. Innovations like lithium-ion and solid-state batteries offer superior energy density and longer lifespans compared to traditional lead-acid or nickel-cadmium batteries. How can we leverage these advancements? By doing so, we not only ensure compatibility but also achieve significant improvements in performance and sustainability.

For a more pragmatic understanding, let’s consider some real-world scenarios. In the automotive industry, a dependable battery cross-referencing tool is indispensable for car battery replacement. Considering the myriad of makes and models, such a reference ensures that users can identify the most suitable battery without exasperating manual searches. Similarly, in the domain of renewable energy systems, ensuring that battery banks and backup systems are equipped with compatible batteries is crucial for optimal performance and efficiency.

Reflecting from my standpoint, the utility of the battery cross-reference chart resonates profoundly. It signifies the intersection of technical expertise and practical application, bridging the gap between intricate battery specifications and real-world requirements. Its ongoing enhancement and widespread adoption will undoubtedly play a crucial role in the continuous evolution of electronics and energy storage solutions.

How to Charge a 12V 7Ah Battery

When embarking on the task of charging a 12V 7Ah battery, the battery type—whether it is lead-acid or lithium—plays a pivotal role in determining the most suitable charging method. Why is this differentiation crucial? Understanding the nuances of battery chemistry becomes essential here.

For a lead-acid battery, using a charger with a charging current of 1A is advisable. This choice ensures a controlled and safe charging process, prolonging battery life by avoiding excessive heat buildup, which can degrade the internal components. Practical experience suggests that monitored charging, where the voltage and temperature are periodically checked, can significantly improve both safety and longevity.

However, lithium batteries demand a specifically designed lithium battery charger. How does this specialized approach enhance safety? These chargers are equipped with control mechanisms to balance cells and prevent overcharging, a critical aspect for maintaining safety and efficiency. The charging time for a 12V 7Ah lithium battery generally ranges from 3 to 5 hours, influenced by the charger’s output and the battery's initial charge level. A charger featuring a built-in indicator to signal when the charging process is complete is often recommended.

Additionally, integrating a Battery Management System (BMS) into lithium batteries can further enhance safety by monitoring and managing the charging and discharging conditions. Is this extra layer of monitoring truly effective? Observations from various applications confirm that it aligns with best practices aimed at maintaining optimal battery health, crucial for device reliability.

From a broader perspective, investing in high-quality chargers that include features such as overcharge protection, short circuit protection, and thermal management is beneficial. This approach not only ensures the battery's longevity and operational efficiency but also aligns with a strategic maintenance ethos, safeguarding long-term functionality and reliability.

Common Questions and Answers

What Does 7Ah Mean on a Battery? What Does a 12V 7Ah Battery Mean?

The term “7Ah” signifies the nominal capacity of a battery, equating to 7 ampere-hours. This quantifies that the battery is capable of delivering a current of 7 amperes for one hour. Alternatively, it could release 1 ampere for 7 hours, before the charge depletes to 10.5V under standardized testing conditions. A "12V 7Ah" battery indicates a battery possessing a voltage of 12 volts combined with a capacity of 7 ampere-hours. This configuration is favored in various backup and power supply applications, owing to its optimal balance between size, weight, and capacity.

How Long Can a 12V 7Ah Battery Last?

Depending on usage, the lifespan of batteries varies significantly. A 12V 7Ah lead-acid battery, in standby use, typically remains functional for 3 to 5 years, whereas a lithium variant can persist for 10 to 12 years. In cyclic applications, which involve frequent charging and discharging, lead-acid batteries sustain approximately 180 to 220 cycles. In stark contrast, lithium-ion batteries can endure over 2000 cycles. This disparity necessitates consideration for applications requiring frequent cycling, like those involving renewable energy storage or electric vehicles. Proactive maintenance, like regular health checks and preventing deep discharges, can significantly prolong a battery's service life.

How Long Does It Take to Charge a 12V 7Ah Battery?

Charge durations depend on the battery type and the charger employed. For full charging, lead-acid batteries typically take 6-8 hours, while lithium-ion counterparts require 3-5 hours. Using a fast charger, a lithium battery could reach full capacity within 1-2 hours. It is crucial to utilize chargers made specifically for the battery’s type to mitigate any risks of damage, thus ensuring a safer charging method.

Can I Use a Car Battery Charger to Charge a 12V 7Ah Battery?

Utilizing a car battery charger for charging a smaller 12V 7Ah battery is generally inadvisable. These chargers are calibrated for substantially larger batteries, delivering currents that may overwhelm smaller capacities, potentially causing overheating or damage. The prudent option involves utilizing a charger that is either compatible with or specifically designed for a 12V 7Ah battery.

Are All 12V 7Ah Batteries the Same?

Variety exists among 12V 7Ah batteries. Types include SLA (Sealed Lead Acid), GEL, AGM (Absorbent Glass Mat), and lithium varieties. Each category possesses unique attributes concerning performance, efficiency, and longevity. For instance, AGM batteries excel in low self-discharge rates and manage vibration well, while GEL batteries are preferred for their depth in the discharge cycle. Knowledge of these differences aids in selecting the most suitable battery type for particular needs.

What Is the Wattage of a 12V 7Ah Battery?

The output of a 12V 7Ah battery, generally an AGM type, varies from 240 to 200 watts under continuous operation. Nonetheless, lithium batteries typically feature a lower continuous output. The actual power delivered will depend on factors such as internal resistance and the battery's efficiency under operational loads. In real-world scenarios, this power can support various low-energy-consuming devices or act as an emergency power reserve during breakdowns.

How Many Watts of Solar Panel Do I Need to Charge a 7V 6Ah Battery in 12 Hours?

A solar panel with an output ranging between 35 and 40 watts would be necessary to charge a 7V 6Ah battery over 12 hours, assuming conditions of optimal sunlight. Nevertheless, efficiency may vary due to elements like weather conditions, the panel’s installation angle, and geographical positioning. A panel with a slightly higher wattage could offset suboptimal conditions, thus ensuring a consistent charging cycle. Opting for solar panels with superior technology might further enhance vitality and charging dependability.

Can I Use a Solar Panel to Charge a 12V 7Ah Battery Without a Charge Controller?

Charging a 12V 7Ah battery directly from a solar panel without employing a charge controller is not advisable. A charge controller is indispensable for enhancing the charging procedure and shielding the battery from potential overcharging or excessive discharge. Such controllers moderate the voltage and current extending from the solar panels to the battery, certifying that it charges in an optimum manner thereby extending the battery’s usable life. Implementing a charge controller is a best practice in system design that enhances both battery longevity and operational reliability.
