Integrated Circuits Explained: Types, Functions, and Modern Applications

Integrated circuits, or ICs, combine many electronic components into a small chip to perform digital processing, control, and communication functions in modern systems. As IC technology has advanced, chips have become smaller, faster, and more efficient, supporting everything from basic electronic devices to complex computing and industrial applications. This article explains the development of integrated circuits, the main functions of digital ICs, the difference between key circuit types, the characteristics of TTL and CMOS technologies, practical usage guidelines, and the latest innovations shaping digital IC design.

Catalog

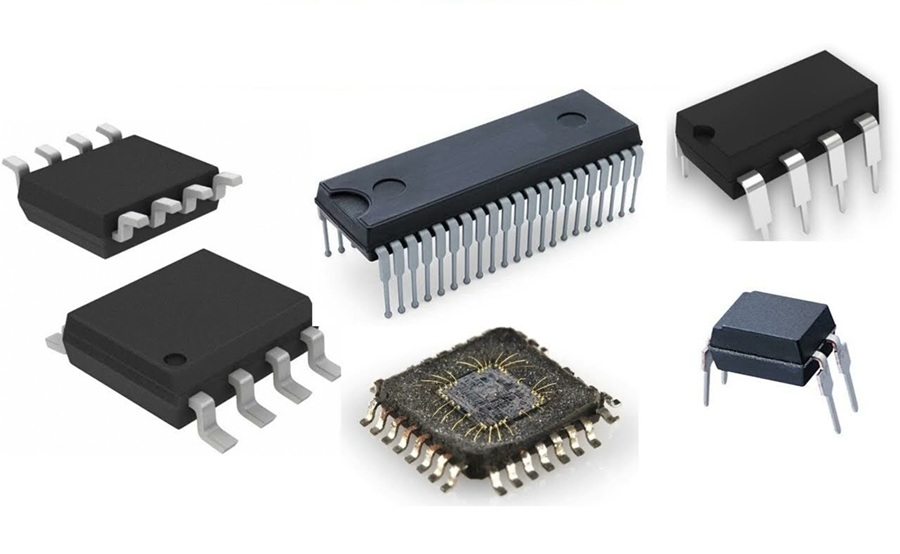

Understanding Integrated Circuits (ICs)

Integrated circuits (ICs) have profoundly changed the electronics landscape by uniting numerous electronic components and complex wiring onto a single compact chip. At their essence, they enable digital signal processing through digital logic tied to Boolean algebra. ICs can be classified by intricacy:

•  Small Scale Integrated (SSI) circuits encompass roughly 10 gate circuits or up to 100 components.
•  Medium Scale Integrated (MSI) circuits contain 10 to 100 gate circuits or 100 to 1,000 components.
•  Large Scale Integration (LSI) circuits hold more than 100 gate circuits or 1,000 to 10,000 components.
•  Very Large Scale Integrated (VLSI) circuits exceed 10,000 gate circuits or range from 100,000 to 1,000,000 components.
•  Ultra Large Scale Integration (ULSI) circuits feature more than 100,000 gate circuits or from 1,000,000 to 10,000,000 components.

The ongoing march of technology continues to stretch the boundaries of IC scale. Looking ahead to 2025, contemporary processors are expected to contain billions of transistors, prompting a reimagined classification framework that transcends basic component count to include facets like process nodes measured in nanometers, advanced transistor architectures, and their varied application environments.

In the dynamic field of ICs, process nodes and transistor architectures are important. As manufacturing technology evolves, transistors shrink, enabling ICs to accommodate more transistors, intensifying performance and efficiency. Industry experience reveals that smaller node sizes frequently lead to enhanced power efficiency and speed, revolutionizing IC capabilities and applications across various arenas like computing, telecommunications, and consumer electronics.

IC applications span a wide array of technology sectors, leaving an indelible mark on electronics. From simple household gadgets to intricate computing systems, IC integration is prevalent. This extensive reach emphasizes the need for ongoing innovation and adaptations in design and production. For example, practical applications in automotive and industrial fields demonstrate how ICs drive advanced control systems and promote automation, propelling technological advancement rapidly.

Digital Integrated Circuit Functions and Design

Digital integrated circuits revolve around two main categories of logic functions that underpin their behavior.

Combinational Logic Circuits

Combinational logic circuits are unique due to their pure dependence on current inputs for output analysis, with no consideration for previous states. This group includes devices like encoders and decoders. Their design often centers around finding a harmonious balance between speed and power efficiency, a delicate equilibrium crucial for applications demanding rapid data handling. The practical integration of these circuits requires a deep appreciation of logic gate operations to ensure smooth data transformation.

Sequential Logic Circuits

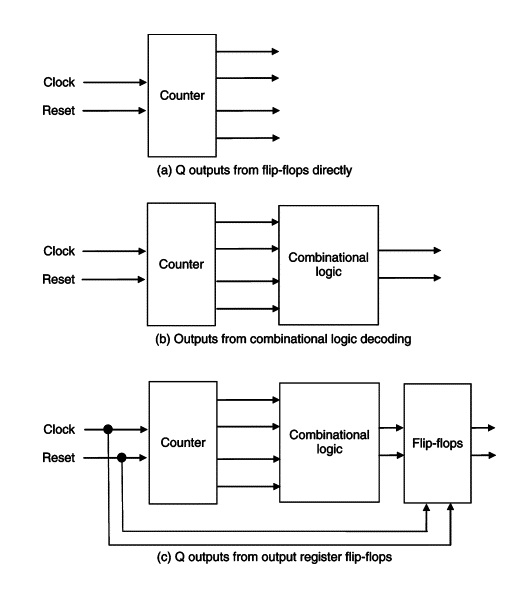

Sequential logic circuits stand apart due to their ability to process both current inputs and historical states, which requires the incorporation of memory elements. Components like registers and counters operate within this framework. Designing sequential circuits entails a concentrated focus on state transitions and maintaining stability. Flip-flops and latches are strategically used as foundational elements for elaborate memory setups. Understanding these elements can profoundly affect the dependability and efficiency of memory-centric applications, bringing a satisfying sense of achievement to those who master their intricacies.

General-Purpose and Application-Specific Integrated Circuits

Digital circuit design introduces a contrast between general-purpose circuits and Application-Specific Integrated Circuits (ASICs). General-purpose circuits are versatile products suitable for varied applications across different sectors, offering adaptability but sometimes sacrificing specialization. ASICs, conversely, are meticulously crafted for particular functions, optimizing performance and proficiency in specialized tasks. Choosing between these options often involves a thorough analysis of the intended application breadth, influencing the decision on whether to prioritize flexibility or specialization.

Integration and Control in Digital Circuits

Digital circuits internally weave combinational logic with memory cells, intricately constructing data pathways through interconnected elements like multiplexers and comparators. Designing these pathways demands meticulous attention to detail to ensure operational consistency and accuracy. Control logic is essential for managing sequential operation and timing, providing a structured approach to synchronous circuit design. Its role may seem subtle yet complex, acting not only as an organizer but also as a unifier, aligning various circuit components towards a cohesive operational vision. Advanced designers often recognize the beauty in control logic when they witness diverse parts converge seamlessly into a harmonious whole. Knowing this level of strategic design can evoke a deep sense of satisfaction within a developer's journey.

Digital Integrated Circuit Models and Types

Digital integrated circuit (IC) models are recognized through identifiers such as manufacturer prefixes, unique serial numbers, and suffixes that describe temperature tolerance and package type. Over time, various technologies have been implemented, including TTL (Transistor-Transistor Logic) and MOS (Metal-Oxide-Semiconductor). TTL, once a staple, has faded into near obsolescence as CMOS (Complementary Metal-Oxide-Semiconductor) circuits have gained prominence, successfully aligning with the evolving demands of contemporary digital technologies.

The evolution from TTL to CMOS can be attributed to multifaceted motivators. CMOS circuits exhibit exemplary power efficiency, which is advantageous for extending battery life and minimizing energy expenditure. They possess high input impedance and demonstrate considerable resilience against electrical interference, ensuring dependable performance across fluctuating operational scenarios. Moreover, the adaptability in CMOS voltage operations showcases a capacity for versatile designs that integrate effortlessly into a wide range of electronic applications, reflecting a societal shift towards cost-effective and conservation-minded solutions.

Within the field of modern digital circuit architecture, CMOS has emerged as the preferred choice due to its superior integration capabilities. The inherent consistency of CMOS circuit units enhances integration, especially within intricate systems such as gate circuits and codecs. This uniformity in design simplifies production methodologies, thus enabling the creation of high-density chip layouts, which used in the ongoing progression of computing technology and its broader implementation.

TTL and CMOS Integrated Circuit Characteristics

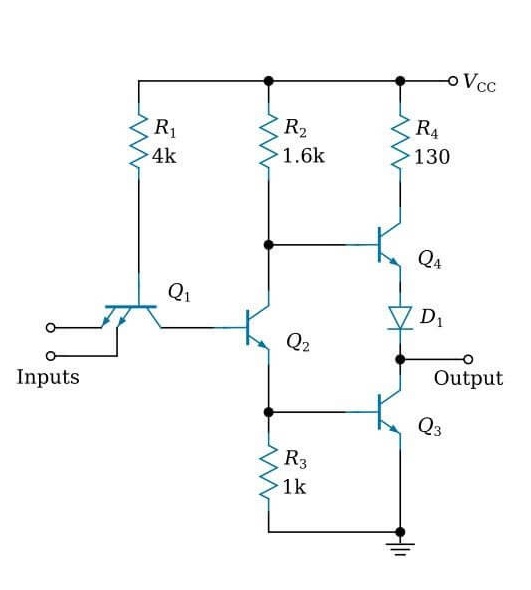

Transistor-Transistor Logic (TTL) circuits remain a noteworthy component in the realm of older technology, earning respect thanks to their unwavering logic functions. Operating within a constrained voltage range while offering limited speed, they provide a layer of predictability that some industries value over cutting-edge features. This reliability manifests itself in situations that prioritize stability, embodying a facet of engineering that honors consistency and resilience.

Complementary Metal-Oxide-Semiconductor (CMOS) circuits exhibit remarkable adaptability by accommodating diverse voltage ranges. In contrast to TTL, CMOS circuits show their prowess by efficiently managing power during state transitions, which substantially diminishes power wastage during resting states. This attribute shines brightly in battery-dependent devices, where energy saving directly impacts device longevity. Here, the circuits' elevated input impedance and impressive interference resistance play a crucial role, ensuring operational steadiness even in turbulent conditions.

High logic swing and fan-out capabilities amplify the allure of CMOS circuits within contemporary electronics. By harnessing majority carrier control, they bravely navigate environments with radiation exposure, a trait indispensable in aerospace and nuclear settings demanding superior temperature resilience. On-the-ground experiences confirm their tenacity, thriving in adversarial climates and thereby extending the operational lifespan of devices.

The refined construction of CMOS circuits not only optimizes spatial efficiency, allowing for the development of extensive integrated circuit arrays but is also enriched by modern innovations such as FinFET and Gate-All-Around designs. Together, these developments unfold a horizon where semiconductor technology perpetually advances, nurturing the creation of compact yet potent circuits that cater to the dynamic requirements posed by today's electronics industry.

Digital Integrated Circuit Usage Guidelines

Keep Operating Conditions Stable

Integrated circuits work best under controlled conditions and need careful monitoring for stable operation. Exceeding power limits can cause faults, so staying within safe ranges is standard practice. Reliable voltage regulation helps prevent unwanted changes that may affect performance. Attention to power supply variations in circuit design also helps avoid failures.

Manage Input and Output Interfaces Correctly

• Stabilize Input Signals

Handling CMOS input signals calls for abiding by particular parameters to avoid latch-up—a disruptive mode where undesired current pathways inflict damage. Adhering to current and voltage standards is a practiced method to deter such issues. Moreover, circuit unpredictability owing to floating concerns can be curbed by grounding or ensuring proper connectivity of unused inputs.

• Isolate Output Terminals Properly

Output terminal isolation is essential to dodge potential short circuits, which present substantial interruptions or harm. The application of isolation techniques and protective circuits by engineers elevates the system’s safety and reliability, preserving the circuit's operational form.

Prevent Electrostatic Discharge Damage

Interacting with ICs, especially those rooted in CMOS technology, mandates a careful blueprint for negating electrostatic discharge threats, prevalent across various settings. Practitioners regularly establish grounding frameworks and wield antistatic tools to defend delicate components from electrostatic detriment.

Ensure Compatibility During Integration

• Check Model Substitution Carefully

When swapping models such as CC4000 or CD4000, mindful consideration of electric characteristics like threshold voltages and current ratings is vital, as they might differ greatly. Veteran component integrators delve into comprehensive datasheets and conduct compatibility assessments to pinpoint incompatibilities prior to execution.

Reduce Interference in Circuit Design

• Control and Minimize Signal Interference

Masterful circuit architecture emphasizes dampening interference through strategic spatial arrangement and judicious component choices. Interference suppression may involve minimizing lead lengths and addressing capacitive loads, ensuring robust signal integrity amid varied conditions. This strategy synchronizes with optimal methods to enhance performance and dependability, especially within intricate and demanding applications.

Digital IC Innovations from 2025 to 2026 and Beyond

Digital IC Innovations from 2025 to 2026

From 2025 to 2026, digital integrated circuits (ICs) continue to improve with strong progress in semiconductor technology. The industry has advanced to 3nm process nodes, while 2nm technology is already being developed. These improvements support many modern systems, including smartphones, AI processors, and high-performance computing devices.

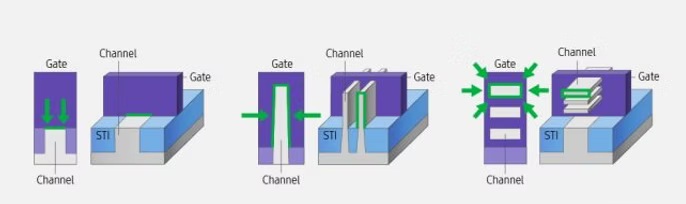

One major innovation during this period is the adoption of Gate-All-Around (GAA) transistors. This new structure provides better control of current, allowing chips to deliver higher performance with lower power consumption. It helps overcome the limits of older transistor designs and improves overall efficiency.

Power Efficiency and Performance Balance

Power efficiency remains a key focus in modern IC design. Many CMOS circuits now operate at very low voltages, sometimes around 0.7V, while still maintaining strong performance.

Technologies like dynamic voltage and frequency scaling (DVFS) allow systems to adjust power and speed based on workload. This helps reduce energy use and improves battery life in portable devices. Balancing performance and power consumption is now more important than ever as devices become more advanced.

Specialized IC Design for Targeted Applications

There is a growing demand for specialized ICs designed for specific applications. Instead of using general-purpose chips, industries now develop ICs tailored for tasks such as:

• Artificial intelligence processing

• Graphics rendering

• Cryptocurrency mining

• System-on-chip (SoC) integration

These custom designs provide better efficiency and performance for their intended use. This trend shows a clear move toward more focused and application-specific solutions.

Design Methodologies

Modern IC design uses advanced Electronic Design Automation (EDA) tools to handle complex circuit development. Engineers also use high-level programming languages like C and C++ to simplify the design process.

These tools help reduce development time, improve accuracy, and allow designers to build more complex systems efficiently. As a result, innovation in digital ICs continues to grow faster.

Post-CMOS Technologies

Looking beyond 2026, researchers are exploring new technologies that go beyond traditional CMOS. One example is carbon nanotube transistors, which offer the potential for faster and more energy-efficient devices.

These emerging technologies aim to overcome the physical limits of silicon-based designs. As the industry continues to evolve, new materials and structures will play an important role in shaping the future of digital ICs.

Conclusion

Integrated circuits remain a foundation of modern electronics because they support compact design, fast operation, and efficient system control across many applications. Their development has moved from simple logic devices to highly integrated and specialized chips that power today’s digital technologies. Understanding digital circuit functions, IC types, TTL and CMOS characteristics, and safe design practices helps explain how these devices work and why they continue to evolve. As semiconductor technology advances, integrated circuits will remain central to improving performance, efficiency, and functionality in future electronic systems.

Frequently Asked Questions [FAQ]

1. What constitutes a digital integrated circuit?

Digital integrated circuits (ICs) harness the prowess of binary signal processing through components like digital logic gates, multiplexers, and flip-flops. These building blocks, central to digital electronics, pave the way for practical designs and affordable solutions across varied technological fields. Digital ICs are sorted into categories such as linear and radio frequency ICs, each tailored to specific applications.

2. How do digital integrated circuits operate?

Acting as the cornerstone of modern technology, digital ICs encompass transistors, microprocessors, and diodes to modulate electrical currents and manage potential differences. These elements synergize to empower systems with dynamic memory capabilities, forming the basis for the smooth function of sophisticated digital systems. This collaboration nurtures a wide range of applications, from everyday gadgets to cutting-edge computing devices.

3. Which are examples of integrated circuits?

Integrated circuits encompass key components like microcontrollers, microprocessors, and field-programmable gate arrays (FPGAs), all notable for their densely packed transistors and adept processing capabilities. These elements equip systems with extensive computational capabilities, enabling complex operations and boosting performance in consumer electronics, automotive systems, and industrial machinery.

4. In what domains are digital circuits utilized?

Digital circuits adeptly handle Boolean algebra, a fundamental aspect of digital computing, transcending computational devices to infiltrate telecommunications, automation, and data processing. With their logic-driven frameworks, digital circuits assure the efficient processing and communication of digital data, laying the groundwork for the smooth functioning of the digital sector.

5. How does an integrated circuit function?

Integrating various roles such as signal amplification, oscillation generation, and acting as a microprocessor or computer memory, integrated circuits are encapsulated in compact chips. Crafted on silicon wafers, they house elements like transistors, resistors, and capacitors, which collectively advance the miniaturization and efficiency of electronic systems. This adaptability aids technological progress, encouraging breakthroughs across a multitude of sectors.
