Exploring ASIC Chips: Performance, Power, and Efficiency

ASIC chips are built to handle specific tasks with high speed and efficiency, making them a key part of modern technology. By 2026, they play an important role in areas like AI, cloud computing, and automotive systems. Their design focuses on performance, power efficiency, and compact size, which allows them to outperform general-purpose processors in targeted applications. This article explains how ASICs work, how they are designed, their advantages and limitations, different architectures, and the latest developments shaping their use today.

Catalog

1. Overview of ASIC Chips by 2026
2. Designing ASIC Chips: A Simpler View
3. ASICs vs. GPUs: Pros and Cons
4. Assorted ASIC Architectures
5. Distinctive ASIC Developments in 2026
6. Conclusion

Exploring ASIC Chips: Performance, Power, and Efficiency

Overview of ASIC Chips by 2026

ASICs, or Application Specific Integrated Circuits, are set to leave their mark on the tech landscape of 2026, propelling forward areas like Generative AI, cryptographic ledgers, and advanced vehicular radar. These chips, designed for specific computational roles, prioritize optimized algorithms, such as those found in Neural Networks, surpassing the performance of general CPUs with astonishing speed and precision.

Through the utilization of pioneering manufacturing techniques, ranging from 5nm to 2nm nodes, these ASICs incorporate Chiplet technology, which links computational and memory modules via high-speed channels. Embracing numerous IP cores like High Bandwidth Memory (HBM3e) and refined power management capabilities, ASICs stand out in the field of AI applications, facilitating efficient LLM inference. Despite the deceleration of Moore's Law, the embedding of over 100 billion transistors into compact forms tailor-made for edge systems showcases the harmony between hardware and software, resulting in substantial performance improvements.

The transition from early integrated circuits with limited transistors to modern ASICs emphasizes the growing integration scales, which bolster system reliability, trim latency, and cut down energy use. This evolution resonates in practical uses where refined operations yield simplified processes and inventive functionalities across sectors.

Integrating comprehensive system logic into ASICs elevates performance levels, ushering in a new era of distinguished computing efficiency and application-focused optimization.

Designing ASIC Chips: A Simpler View

Progress in ASIC Design by 2026

By 2026, designing ASIC chips has become faster and easier. This is mainly because of better design tools, especially those supported by AI. These tools do complex work with more accuracy and less time.

As technology continues to grow, devices are becoming smaller, faster, and more efficient. ASIC design is making this possible, helping create advanced and reliable electronic systems.

Key Steps in ASIC Design

Planning the Chip Structure and Goals

The process starts by planning how the chip will work. The design is divided into smaller parts, each with a specific function. For example, some parts may handle processing tasks like an NPU core. At this stage, focus on three main goals: performance, power use, and chip size. These goals must be balanced carefully, since improving one can affect the others.

Designing the Logic Using HDL

Next, the design is written using special coding languages called Hardware Description Languages, or HDL. This step turns the planned idea into a working digital design. It requires both technical knowledge and problem-solving skills to make sure everything works correctly.

Testing and Checking the Design

After the logic is created, the design is tested to find and fix problems. This can be done using tools like FPGAs or software simulations. Some advanced methods, like digital twins, are used to study how the chip will behave, including heat performance. This helps prevent issues before the chip is built.

Physical Design and Chip Creation

In this step, the design is prepared for manufacturing. The logical design is converted into a physical layout, showing where each part will be placed on the chip. This includes arranging tiny components like transistors inside the chip. Careful planning here helps improve performance and reduce size.

ASICs vs. GPUs: Pros and Cons

Pros

The tech world is ever-changing, and choosing between ASICs and GPUs demands careful thought. ASICs shine in their unique specialization, offering unparalleled benefits for certain demanding tasks. Their streamlined architecture enhances area efficiency by removing components often found in CPUs, optimizing silicon usage while maintaining impressive throughput. This refined design is advantageous in handling large AI models, where ASICs excel over GPUs in energy usage, ultimately lowering operational costs and supporting eco-friendly practices.

Energy Efficiency and Maximized Performance

ASICs are renowned for their energy conservation, using noticeably less power than GPUs. This feature opens doors to high-computational tasks once limited by power issues, allowing once-unimaginable operations. They also boast impressive performance density, enabling swift data movement with minimal delay. Such capability is critical for applications requiring immediate processing where timing is important.

Economic Dynamics of Large-scale ASIC Production

The economics of scale emphasize ASICs' advantages, with mass production driving down per-unit costs and making them a wise choice for extensive deployments. Consumer-level ASICs can range from $0.30 to $3.00, broadening their appeal and implementation potential.

Cons

Initial Costs and Lengthy Development

Despite their benefits, ASICs face specific hurdles. Designing an ASIC can demand upwards of $500 million as an initial cost, creating a significant entry hurdle. Coupled with the lengthy development cycle, sometimes spanning years, it poses a challenge from concept to production. Yet, strategic investors often find this worthwhile, especially in niche markets demanding specific functionality.

Design Inflexibility After Production

Post-production, ASICs offer limited adaptability; any design changes require re-engineering. This contrasts with GPUs, which can update via software. This inflexibility may hinder industries needing constant innovation or prompt feature updates.

While ASICs offer tailored solutions, GPUs' flexible nature remains valuable, especially in settings demanding quick iterations. The rapid advancement of GPUs provides an appealing alternative, to leverage the latest innovations without overhauling hardware significantly.

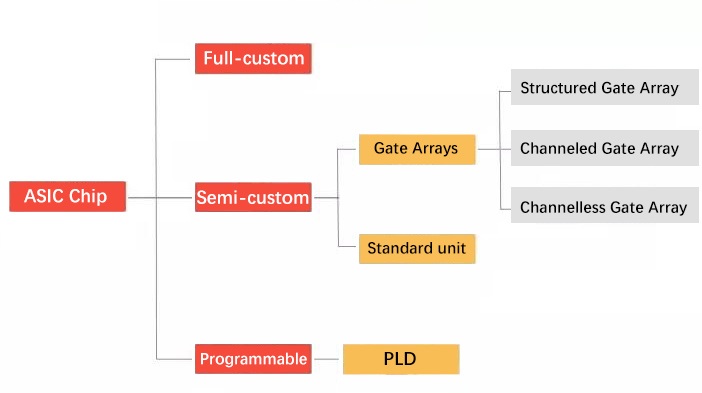

Assorted ASIC Architectures

 Assorted ASIC Architectures

Full-Custom ASIC Chips

In the domain of ASIC design, Full-Custom ASIC Chips stand as the epitome of specialization, tailored for exact performance needs. These chips undergo an exhaustive design process focused on maximizing performance and minimizing die size, ideal for high-stakes situations like high-frequency trading. Every element, down to the placement of transistors, is crafted with utmost precision, much like the intricate work involved in assembling a Swiss watch. Though demanding considerable resources, this approach delivers exceptional speed and efficiency, where mere milliseconds can alter outcomes.

Semi-Custom ASICs Using Standard Cells

Semi-Custom ASICs utilize pre-verified Standard Cells within their structure, capturing a substantial portion of the ASIC market. This design strategy leverages existing libraries of functional modules, enabling streamlined configuration and connection. By accelerating the design process and minimizing error risk, it appeals widely across various applications. Consider it akin to using pre-fabricated components in constructing a building, rapidly achieving structural integrity without sacrificing durability or reliability.

Gate Arrays and Structured ASICs

Gate Arrays and Structured ASICs occupy the middle ground between FPGA adaptability and Standard Cell performance. These architectures present a balanced option for faster design cycles with some degree of tailorability. They are advantageous for projects demanding specificity without the resources for a full custom development. This resembles selecting optional features for a car to enhance certain functions, while maintaining the core design.

Programmable ASICs for Adaptive Projects

Programmable ASICs bring flexibility through post-manufacture configuration. Their adaptive nature is especially favorable for prototyping and scenarios requiring design revisions post-production. These architectures resonate with industries that thrive on rapid prototyping and testing under diverse conditions, comparable to adaptive clothing adjusting to environmental shifts and preferences, providing sustained comfort and practicality.

AI-Exclusive ASICs: TPUs and LPUs

In response to the rise of artificial intelligence, AI-specific ASICs, like Tensor Processing Units (TPUs) and Learning Processing Units (LPUs), have been developed. These chips are finely tuned for managing complex neural network computations, bolstering the efficiency of deep learning and AI model processes. Carefully constructed, these architectures meet the stringent demands of modern AI initiatives, exemplifying the trend towards hardware refinement aligned with software evolution, fueling notable progress in computational prowess.

Distinctive ASIC Developments in 2026

In the vibrant domain of ASICs, 2026 showcases remarkable advancements driven by the AI Arms Race among prominent industry players. Google's TPU v7 emerges prominently due to its fusion of High Bandwidth Memory and optical links, setting a fresh benchmark for AI inference capabilities. This cutting-edge technology enables swifter and more efficient processing, sparking advancements in AI that captivate both exploration and practical implementation. Analysts observe these enhancements as they foster seamless AI operations across varied sectors, emphasizing how connectivity and memory management are dynamically propelling AI performance to new heights.

These innovative ASICs are instrumental in reshaping cloud landscapes, specifically by their tailored AI acceleration capabilities. They are meticulously designed to optimize tasks such as generative models, reflecting a growing trend toward developing intelligent systems that can forecast and synthesize complex data streams. This evolution is increasingly perceived as crucial for tackling sophisticated business and technological challenges. Implementing such advanced ASIC solutions is a reaction to the escalating demand for more potent and efficient cloud services, echoing a broader movement towards cloud-centric AI dominance.

In the automotive technology sphere, Tesla's Dojo ASIC is achieving significant progress in refining computer vision tasks essential for advancing self-driving technologies. This emphasizes the pragmatic deployment of specialized chips to address practical issues in automation and vehicular safety. The quest for superior computer vision aspects is indicative of a wider industry drive towards realizing full vehicular autonomy, propelled by competitive forces and relentless technological progress.

Conclusion

ASIC chips continue to shape modern computing by delivering fast, efficient, and task-focused performance. While they require high development cost and offer limited flexibility after production, their advantages make them valuable in large-scale and specialized applications. Different architectures provide options for various design needs, from full customization to partial flexibility. As technology moves forward, ASICs remain a strong solution for improving speed, reducing power use, and supporting advanced systems across industries.






Frequently Asked Questions [FAQ]

1. What are the primary purposes of ASIC chips?

ASIC chips are made to do one specific job. They work faster and more efficiently than general processors because they focus on a single task. They are used in devices like communication systems and network equipment to improve speed, performance, and reliability.

2. How is ASIC chip technology revolutionizing industries?

ASIC chips improve performance by focusing only on needed tasks. This makes devices faster and more efficient. They also use less power, which helps extend battery life and reduce delays. Many industries use them to build better and more energy-saving products.

3. In what way does an ASIC chip operate specifically for mining?

ASIC mining chips are built only for cryptocurrency mining, like Bitcoin. They solve mining calculations very fast and with high efficiency. Because they are specialized, they perform much better than regular processors, making them useful for serious mining setups.
